Pioneer GM-D8701

Typ: Konečná etapa
Cinch konektor: ano
Subwoofer: ano
Max. výkon (Watt): 800
Jmenovitý výkon Stereo (4 Ohm/Watt): 1 x 300
Jmenovitý výkon Stereo (2 Ohm/Watt): 1x 500
High-pass filtr (Hz): 40 - 500
Impedance (ohm): 1 / 2 / 4
Poměr signálu k šumu (dB): 100
Barva: černá
Šířka (cm): 302
Výška (cm): 60
Hloubka (cm): 215

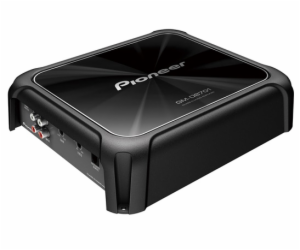

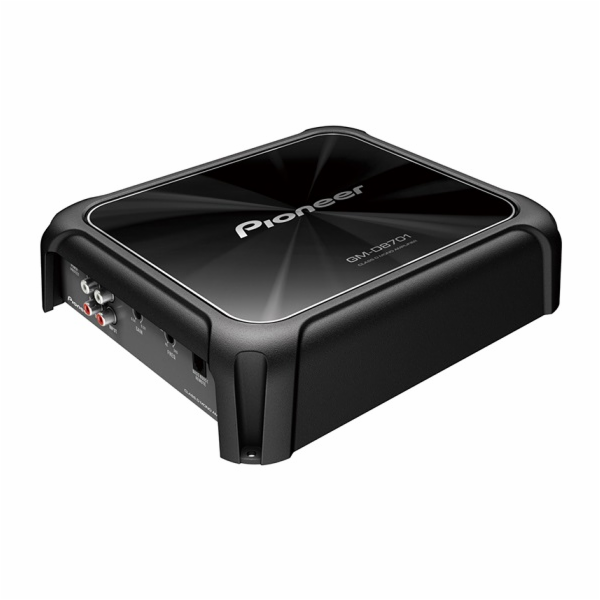

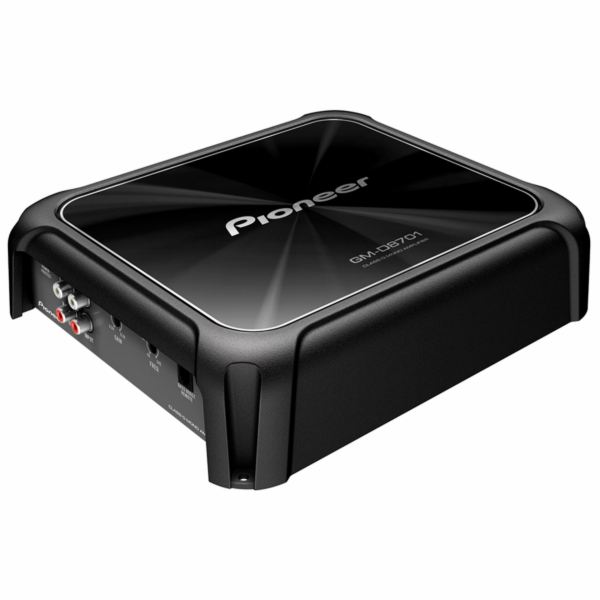

Pioneer GM-D8701, 1600 W Class-D mono amplifier with remote bass boost

An amplifier shouldn't take up too much space - especially not in the car. The compact GM-D8701 is 1-ohm stable, flexible to install and offers plenty of power.

Features:


Speaker input sensor - Connect your existing OEM unit without additional adapters.
Variable TPF - Adjust the low-pass filter frequency for greater audio system flexibility
Multi-device connection - Easily connect up to 4 subwoofers for more powerful audio output
Class D - Enjoy premium sound and high volume in a versatile, ultra-compact system
Channels: 1
RCA connectors
Speaker inputs: Block type
Maximum input power:

1 x 600W (4?)
1 x 1000W (2?)
1600W (1?)


Continuous output power (RMS):

1 x 300W RMS (4?)
1 x 500W RMS (2?)
1 x 800W RMS (1?)


Input level control: RCA (0.2V - 6.5V) / SP (0.8V - 16V)
Distortion: < 0.05
Signal-to-noise ratio: > 100 dB
Enclosure dimensions (W x H x D): 302 x 60 x 215 mm
Bass control: remote control
Crossover frequency: 40 - 500 Hz (-12 dB/oct) Hz
Mono / 1-channel
