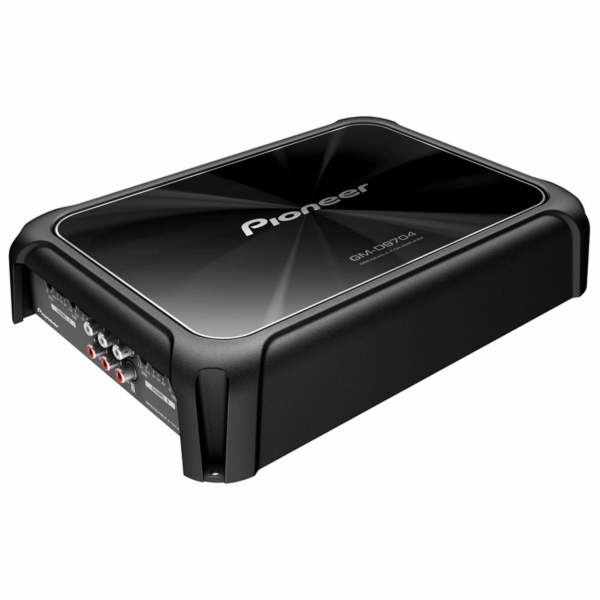

Pioneer GM-D9704

Typ: Konečná etapa
Cinch konektor: ano
High Level Input: ano
Konektor pro reproduktor: ano
Max. výkon (Watt): 800
Jmenovitý výkon Stereo (4 Ohm/Watt): 520
Jmenovitý výkon Stereo (2 Ohm/Watt): 800
Poměr signálu k šumu (dB): 95
Barva: černá
Šířka (cm): 31,5
Výška (cm): 6,0
Hloubka (cm): 20,0

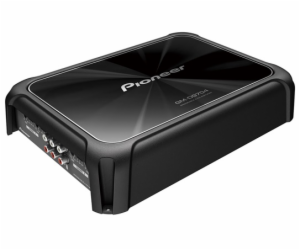

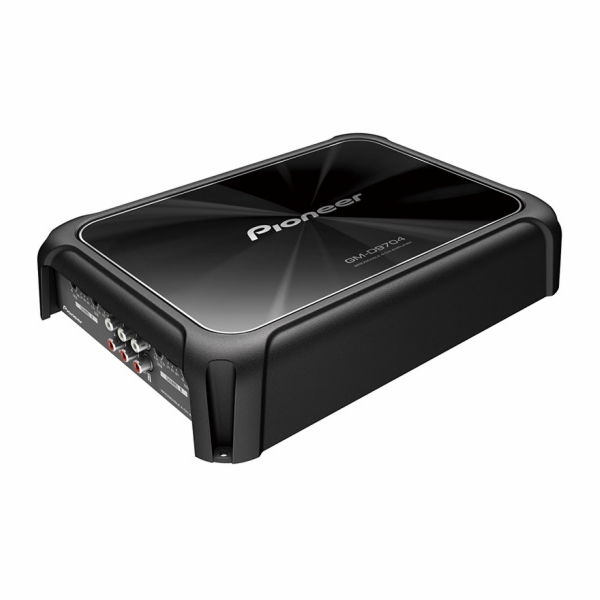

Pioneer GM-D9704 4-Channel Class-D Amplifier / Power Amplifier (1600 W)

The amplifier is extremely compact yet powerful, so it can be placed almost anywhere in the car.

Features:


Speaker input sensor: easily connect your existing OEM device without additional adapters.
Variable TPF: Adjust the low-pass filter frequency for greater audio system flexibility.
Variable HPF: Adjust the high-pass filter frequency for greater audio system flexibility
Multi-unit connection: Connect up to 4 subwoofers for more powerful audio output
Class D: Enjoy the premium sound and high volumes of a versatile system that's half the size of other units
Channels: 4 / 2 / 1
RCA connectors
Speaker inputs: Block-type
Maximum input power:

4 x 260W (4?)
4 x 400W (2?)
1600W total


Continuous output power (RMS):

4 x 130W RMS (4?)
4 x 200W RMS (2?)
4 x 130W RMS (1?)
2 x 400W RMS (4? bridged)
2 x 260W RMS (2? bridged)


Frequency response: 10 Hz - 50 Hz
Input level control: RCA (0.2V - 6.5V), SP (0.8V - 16V)
Distortion: < 0.05
Signal-to-noise ratio: > 95 dB
Housing dimensions (W x H x D): 315 x 200 x 60 mm
Crossover frequency: 40 - 500 Hz (-12 dB/oct) Hz
Variable HPF
Connection for multiple units
