Pioneer GM-DX104

Typ: Zesilovač
Cinch konektor: ano
High Level Input: ano
Konektor pro reproduktor: 4x
Max. výkon (Watt): 400
Jmenovitý výkon Stereo (4 Ohm/Watt): 4 x 45
Jmenovitý výkon Stereo (2 Ohm/Watt): 4 x 45 + 2 x 90
High-pass filtr (Hz): ano
Low-pass filtr (Hz): ano
Impedance (ohm): 2 - 8
Frekvenční pásmo (Hz): 10 - 40000
Barva: černá
Šířka (cm): 6,4
Výška (cm): 3,8
Hloubka (cm): 18,1
Hmotnost (kg): 1,01

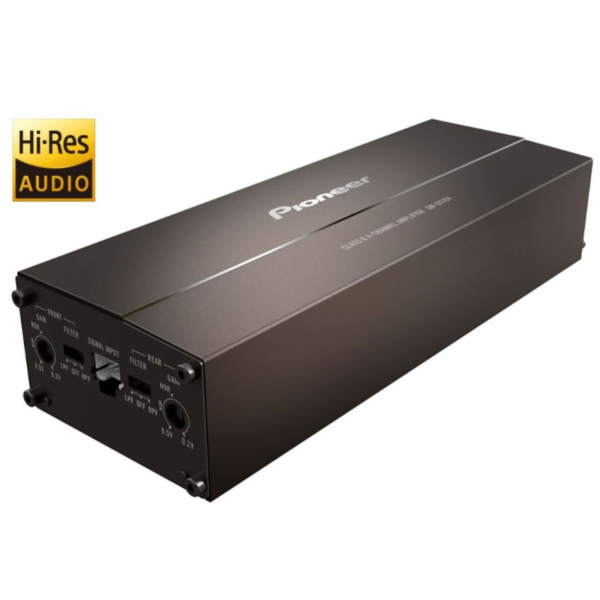

Pioneer GM-DX104 – Micro 4-Channel Amplifier

This compact amplifier delivers clear sound quality for any vehicle without taking up much space. With Class-D technology and High Resolution Audio support, it ensures detailed playback with minimal distortion. Installation is straightforward and works with both factory and aftermarket systems, including electric vehicles.

Precise sound for every system
The four channels provide balanced power for different speaker setups. With an extended frequency range from 10 Hz to 40 kHz, you can enjoy music in high resolution. A signal-to-noise ratio of over 93 dB reduces unwanted noise for a clean sound experience.

Compact design with strong performance
At only 181 mm wide, the amplifier fits into tight spaces. Step-up logic optimises signal processing, while high-pass and low-pass filters allow accurate adjustments. This gives you a flexible solution for various speakers and sound preferences.

Features:


4-channel design for balanced sound distribution
Class-D technology for efficient amplification
Detailed audio playback for clear sound
Continuous output up to 90 W x 2 for powerful performance
Frequency range from 10 Hz to 40 kHz for full sound depth
Distortion level below 0.05% for clean signals
S/N ratio over 93 dB for clear audio
Compatible with impedances from 2 to 8 Ohms for flexible use

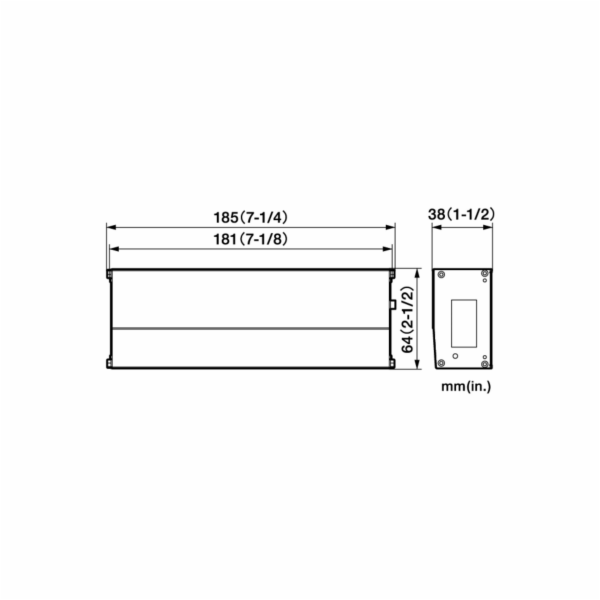

Compact size for space-saving installation: 181 mm x 38 mm x 64 mm
