Typ aku: Lithium-Ionen
Včetně baterií: ne
Počet potřebných baterií: 1
zásobování energií: Aku/síťové napájení
Full HD video záznam (1080p): 60fps
4k video záznam (UHD): 30fps
Jasnost (cd/m2): 1000
Kontrastní poměr: 1000:1
Uhlopříčka obrazovky (cm): 17,78
Horizontální pozorovací úhel (°): 85
Rozlišení: 1920 x 1080
Vertikální pozorovací úhel (°): 85
Úhlopříčka obrazovky (palce "): 7
Barva: šedá
Šířka (mm): 104
Výška (mm): 19
Hloubka (mm): 176
Typ: Monitor
HDMI-Vstup: 1x
HDMI-Výstup: 1x
Připojení sluchátek: ano
USB: 1x USB-A 2.0

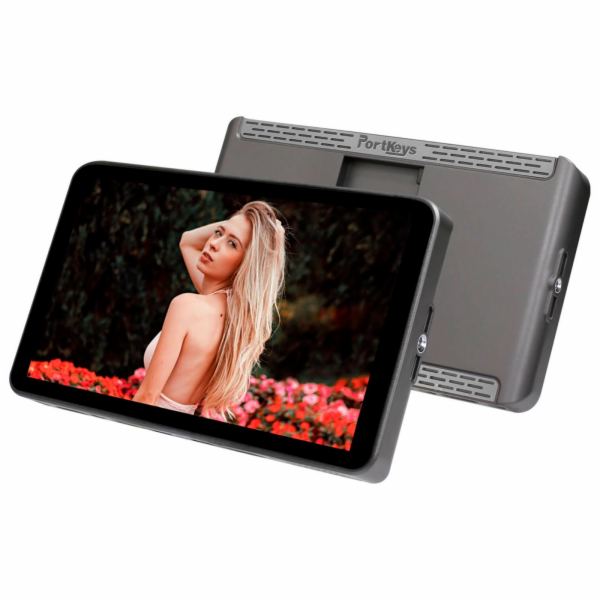

Portkeys LH7H
The Portkeys LH7H features a 7-inch touchscreen monitor with 1,000 nits of brightness, HDMI input and output ports, and a professional set of monitoring features ideal for content creators and budding filmmakers.
Features:
7-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio Daylight-viewable with a maximum brightness of 1,000nits Supports 4K oversampling to 1080p Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color Four user-assignable function buttons Built-in Sony NP-F style battery plate Low power draw of only 8W Customized peaking range(Peaking Frame) Custom JPG picture custom freeze frame Lightweight: only 245g/8.6oz
Please note that the LH7H does not have any camera control capabilities. If you need wireless camera control, please choose the LH7P.
The Portkeys LH7H is an entry-level 7-inch monitor with a daylight-viewable touchscreen, a professional set of monitoring tools, four user-assignable function buttons, a robust and lightweight housing made of Polycarbonate and ABS that only weighs 245g/8.6oz (without battery), and multiple 1/4 “-20 mounting points to attach it on your camera or camera rig easily. The Portkeys LH7H has a maximum brightness of 1,000 nits, which makes it easy to see your image in daylight shooting conditions. The 10-bit (8+2 FRC) panel makes color reproduction more accurate with a rich level of color details and no color banding. The 7-inch display has a FullHD 1920 x 1080 resolution, a large viewing angle, and a 1000:1 contrast ratio. At the bottom of the monitor, you’ll find one 4K HDMI input and one FullHD HDMI output. The 4K HDMI input can take signals up to 4K DCI at 24p, 4K UHD at 30p, or FullHD 1080p at up to 60p. Lastly, the HDMI input of the LH7H supports 4K oversampling to 1080p, resulting in high-resolution, high-detail 1080p video. A built-in Sony NP-F-style battery plate at the back of the LH7H allows you to power the monitor for hours thanks to an extremely low power draw of only 8W. If you power your camera rig via a V-Lock or Gold Mount external battery, there is a 5.5mm barrel connector 7-24V power input at the bottom of the monitor, allowing you to power it infinitely. Lastly, the three-in-one USB-A port will enable you to load custom 3D LUTs, upgrade the monitor’s firmware, and act as a power input/output port (max. 5V 2A).
Included in delivery: 1x LH7H Monitor 1x Safety Box 1x Micro USB Flash Drive 1x A to A HDMI Cable 1x Screen Cleaning Wipe 2x Screen Protector 1x MH-2 Mount
