Full HD video záznam (1080p): 60fps
4k video záznam (UHD): 30fps
Uhlopříčka obrazovky (cm): 17,78
Úhlopříčka obrazovky (palce "): 7
Rozlišení: 1920 x 1080
Jasnost (cd/m2): 1000
Kontrastní poměr: 1000:1
Horizontální pozorovací úhel (°): 80
Vertikální pozorovací úhel (°): 80
zásobování energií: Aku/síťové napájení
Typ aku: Lithium-Ionen
Počet potřebných baterií: 1
Včetně baterií: ne
HDMI-Vstup: 1x
HDMI-Výstup: 1x
SDI vstup: 1x
SDI výstup: 1x
Typ: Monitor
Barva: černá
Šířka (mm): 176
Výška (mm): 104
Hloubka (mm): 39
Hmotnost (g): 409
Portkeys LS7P 7” SDI Camera Monitor for Film Production
A clear, easily recognizable image facilitates decision-making on set, while a compact design ensures flexible workflows. This monitor is designed for camera operators who require reliable image control in varying environments. Its combination of high brightness and color accuracy makes it suitable for brightly lit locations as well as studio recordings. The display also offers ample brightness to assess even subtle exposure differences.
Image Quality That Helps in Everyday Life

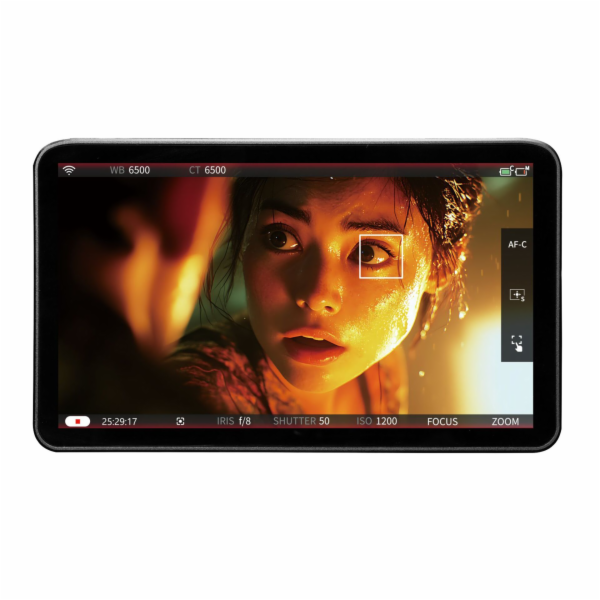

The 7-inch panel displays content at 1920 x 1080 pixels, ensuring that even small details are clearly visible. With a peak brightness of 1000 nits, the image remains visible even in direct sunlight. Color reproduction is based on a 10-bit panel (8+2 FRC), resulting in finer gradations. Factory calibration to REC.709 helps you match the color to other devices. Additionally, the wide 80-degree viewing angle provides a clear view from various positions.
Monitoring and connectivity for ready-to-shoot setups
An HDMI input for 4K30P and a 3G-SDI input ensure flexible connections with film cameras. The HDMI and SDI outputs facilitate signal transmission to additional displays. SDI-to-HDMI cross-conversion simplifies setups using different connections. Features such as waveform, histogram, and false color assist with exposure and control, while LUT integration provides additional creative freedom. The positioning of the ports and threads ensures easy mounting.
Power supply and mounting options for mobile use

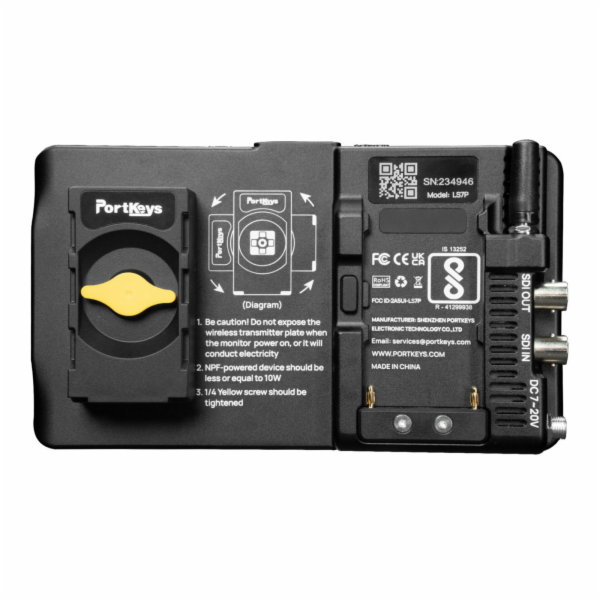

NP-F compatibility allows operation with standard batteries, supporting longer shooting sessions. Additionally, the DC input expands compatibility with external batteries via D-Tap. The integrated NP-F dummy plate with 8V output power helps supply accessories such as wireless transmitters. The rotating battery mount facilitates the construction of compact rigs. The aluminum housing keeps the overall weight low without compromising stability.
Camera control for smoother workflows
Wireless control supports models from Sony, Canon, RED, Nikon, Panasonic, ARRI, and Blackmagic Design, allowing key camera settings to be adjusted directly on the monitor. Touch autofocus for select cameras enables precise focus adjustments on the display. The one-to-many system simplifies multi-camera productions, as one monitor can control up to four additional cameras. This eliminates the need to operate individual cameras once all devices are connected. Integration with mirrorless and cine cameras facilitates quick adjustments on set.
Features:
7-inch Full HD panel with 1920 x 1080 pixels, ensuring fine image details remain visible
1,000 nits brightness for clear viewing in bright ambient light
10-bit panel (8+2 FRC) with wider color gradations, useful for color correction and look decisions
HDMI 4K30P and 3G-SDI inputs facilitate use with various cameras
HDMI and SDI outputs support signal transmission to additional displays
SDI to HDMI cross-conversion simplifies setups with mixed connections
Monitoring tools such as waveform, zebra, and vectorscope aid in exposure and analysis
3D LUT support through custom LUTs useful for look previews
Wireless camera control facilitates quick adjustments without direct access to the camera Camera
Touch autofocus via touch of the display is useful for focus adjustments
NP-F power supply and DC input support longer sessions with different power sources
Lightweight aluminum housing at only 409 g, suitable for compact rig configurations
