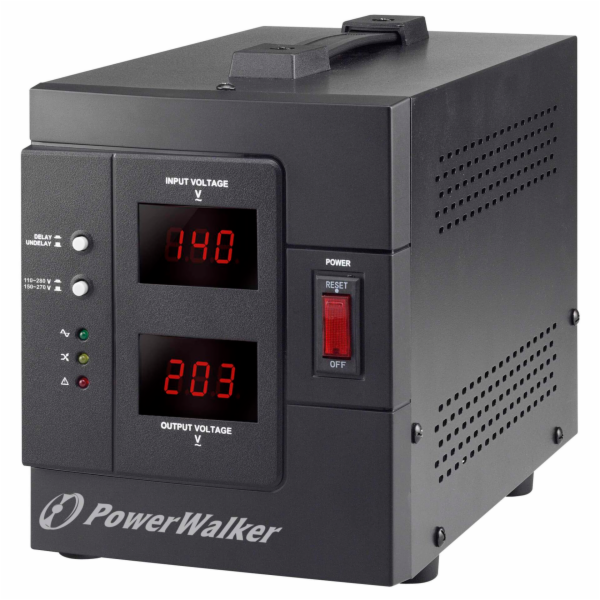

PowerWalker AVR 1500 SIV FR automatic voltage regulator

Výkon (W): 1200
Jmenovitý výkon (VA): 1500
AVR-Funkce: ano
Typ: Autom. regulátor napětí
USB: ne
RS-232: ne
D-Sub 9-pin: ne
Schuko-Výstup: 2x
IEC-Výstup: ne
Plug-in slot pro paměťové karty: ne
Barva: černá
Šířka (mm): 134
Výška (mm): 181
Hloubka (mm): 234
Hmotnost (kg): 5,4

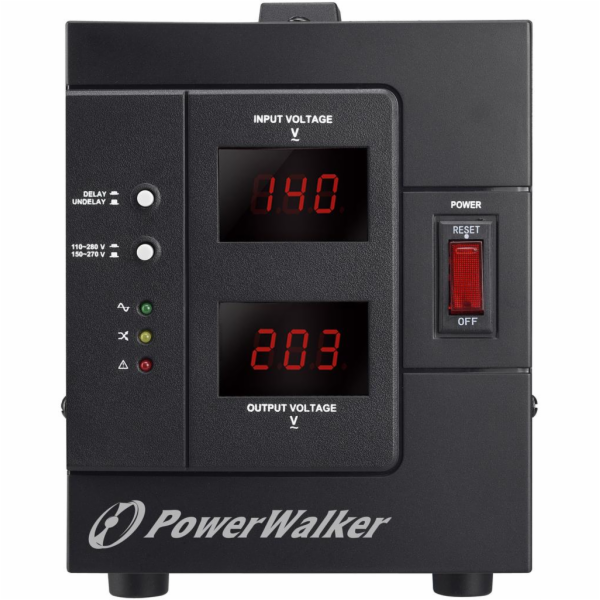

Automatic Voltage Regulator PowerWalker AVR 1500 SIV FR

The PowerWalker AVR SIV series are automatic voltage regulators with selectable input voltage 150-270VAC or wide 110-280VAC. It provides output voltage within allowed limit of +/-10% (207-253VAC) through boost and buck stabilizers.

The built-in thermal sensor provides over-temperature protection and recover, while abnormal situation is eliminated. The device works in following modes depending on input voltage:


Input 252-270/280V - buck mode -10% with respect to input voltage
Input 207-252VAC - normal operation
Input 173-211VAC - first boost +20%
Input 110/150-178VAC - second boost +40%
Input <110VAC in wide range or <150VAC in normal mode - AVR off


Additionally you can turn on protection delay function which will increase protection reaction time from 10s to 3 minutes for less sensitive devices.

Features:


Selectable input voltage range for home appliances and personal computers
Time Delay function eliminates transients that can affect connected equipment
Microprocessor Control guarantees high reliability
