PowerWalker Solar Inverter 5600 LGT Off-Grid

Šířka (mm): 295
Výška (mm): 468
Hmotnost (kg): 12
Montáž na stěnu: ano
Barva: šedá / černá
Délka (mm): 140
RS-232: ano
Micro-USB: 1x
Výstup: Svorka
Vstup: Svorka
RS-485: ano
Typ ochrany: IP20
Maximální hlasitost (dB): 60
Účinnost při plné zátěži (%): 95
Teplotní rozsah (°C): -10 ... +50
Včetně baterií: ne
Doba přenosu (ms): 10
Maximální výkon fotovoltaiky (W): 6000
Akumulátor: ano
Vhodné pro App: ano
WiFi: ano
Dotykové ovládání: ano
LCD Zobrazení: ano
Status LED: ano
Typ: Solární měnič
Vstupní napětí (V): 90 - 280 / 170 - 280
Výkon (W): 5600
Faktor výstupního výkonu: 1
Výstupní napětí (V): 230

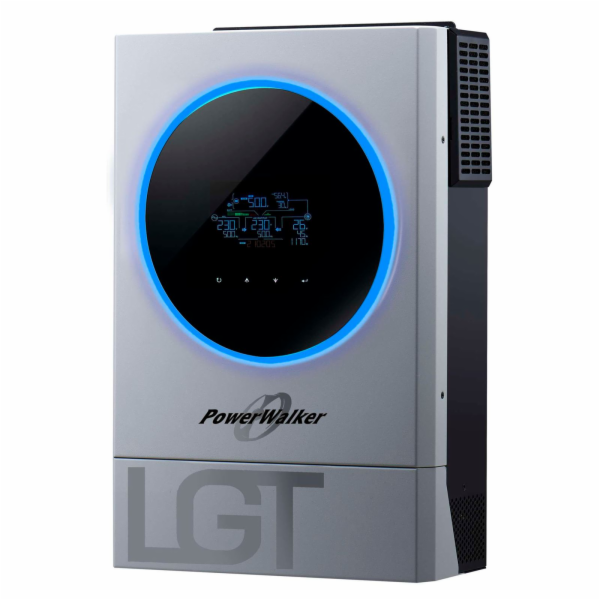

PowerWalker Inverter 5600 LGT OFG
Features:
Modern solar inverter, with advanced touch LCD Configurable ambient LED lighting for every status change Maximal PV peak power 6000W with MPPT charger type technology Can be operated in parallel, up to 9 units Pure Sine Wave Output Strong configurable AC/ PV (Solar) charger Works perfectly with PowerWalker ESS – LiFe Battery System 48-100 Manage your solar inverter with the smartphone App: WatchPower

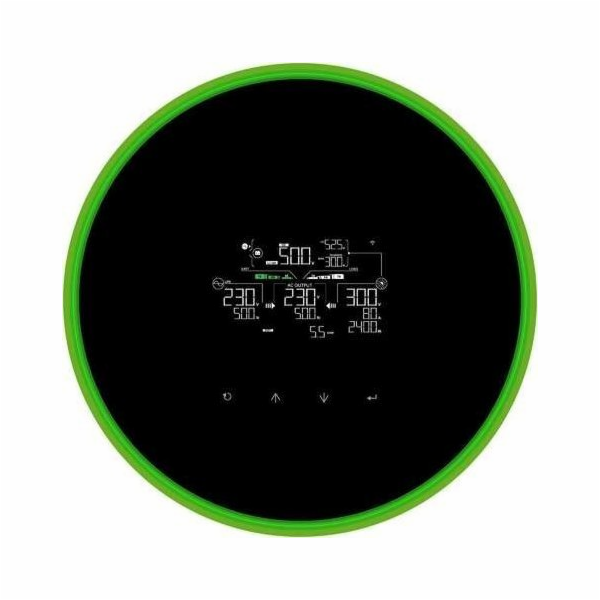

The PowerWalker Solar Inverter LGT series is a multi-functional off-grid inverter, combining features of inverter, solar charger and battery management to offer uninterruptable power supply. Its advanced touch LCD offers user-configurable and easy-accessible operation such as battery charging current and AC/ PV charger priority.
the incoming power of the grid the energy production of the solar panels the stored energy in the battery system

With enough sun, start producing your own green energy.
General features:
Type: Inverter Phases (IN-OUT): 1-1 Form Factor: Wall-Mountable Power Capacity: 5600VA / 5600W Output Power Factor: 1

Input:
Input Voltage Range: 170-280 VAC (narrow range) 90-280 VAC (wide range) Frequency Range: 50Hz or 60Hz (self-adaptive)

Output:
Waveform: Pure Sine Wave Nominal Output Voltage: 230 VAC Voltage Regulation (Battery Mode): ±5%

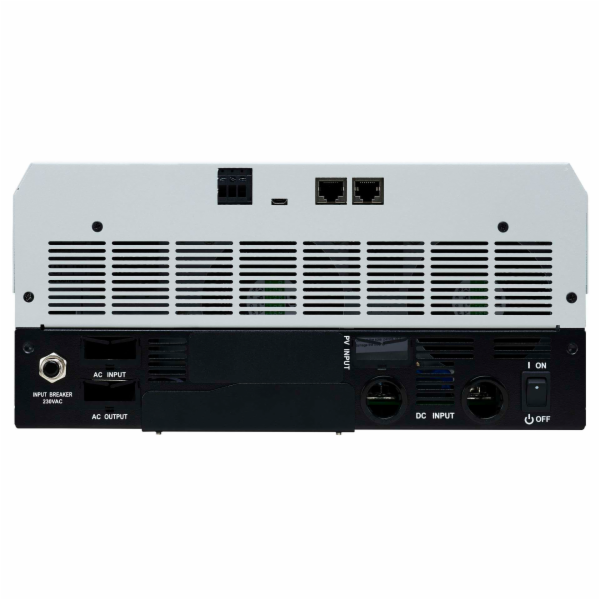

Input & Output connectors:
Input Connector: Terminal Terminal Output: Yes

Technical Details:
LINE Mode Efficiency [%] (Full Load): 95.0 Battery Mode Efficiency [%] (Full Load): 93.0 Transfer Time (AC / Line Mode to Battery Mode) [ms]: 10ms Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]: <20ms Additional Features: Ambient LED Lighting, Battery Independence, Circuit Breaker Reset, External Battery Compatible, Generator Compatible, Off-Grid Technology, PV (Photovoltaic) Charging Supported, Parallel Connectivity, Touch-Display, Wall Mountable

Batteries and Autonomy:
Batteries: Batteries not Included DC Voltage: 4x 12.0V Additional Batteries Information: Designed to work with External Batteries Charger: Max. PV Rating: 6000W Max. PV Array Open Circuit Voltage: 450VDC PV Array MPPT Voltage Range: 120-430VDC Max. PV Array Short Circuit Current: 27A AC/ PV (Solar) Charger Type: MPPT Max. Solar Charger Current: 120A Max. AC Charger Current: 120A Max. combined Charger Current: 120A External Battery Pack: Yes

Communication:
Communication: Dry contact, RS-232, RS-485 – BMS Communication, Wi-Fi, USB Type B – for Monitoring Software Software: WatchPower Parallel Operation [Units]: 9

Environment:
Noise Level: < 60dB Temperature: -10°C – 50°C Humidity: 5% – 95% RH (non-condensing) IP: IP 20

Dimensions and Weight:
Product Dimensions (L x W x H): 140 x 295 x 468 mm Product Weight: 12.0 kg
