Přepínač TP-Link TL-SG1008P

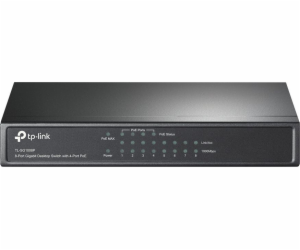

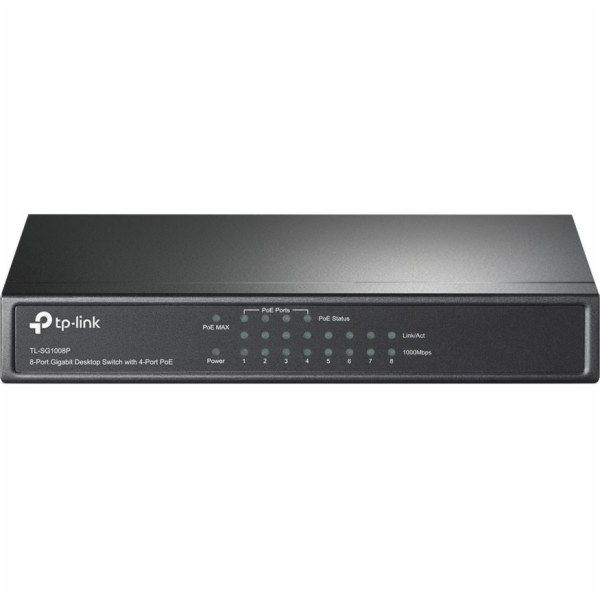

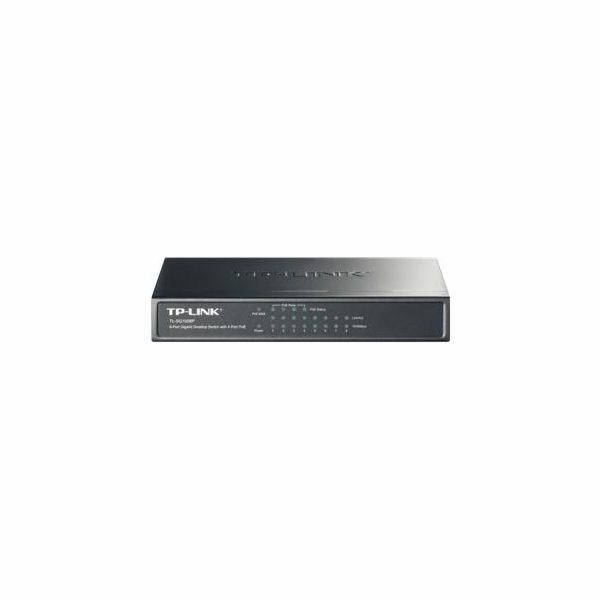

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE

OVERVIEW
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

FEATURES
• 8 10/100/1000Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• Requires no configuration and installation

HARDWARE FEATURES
Interface
• 8 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)

PoE Ports (RJ45)
• Standard: 802.3 af compliant
• PoE Ports: Port1- Port4
• Power Supply: 55W

Backbound Bandwidth
• 16Gbps

Mac Address Table
• 8K

External Power Supply
• External Power Adapter(Output: 48VDC / 1.25A)

Dimensions (W X D X H)
• 171*98*27 mm

Fan Quantity
• Fanless

SOFTWARE FEATURES
Transmission Method
• Store-And-Forward

Advanced Functions
• Compatible With IEEE 802.3af Compliant PDs
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS
Certification
• FCC, CE

Package Contents
• TL-SG1008P, Power Adapter, User Guide

Consumption
• 5.8 watts (max. no PD connected)
• 58.8 watts (max. with 53w PD connected)

Environment
• Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
