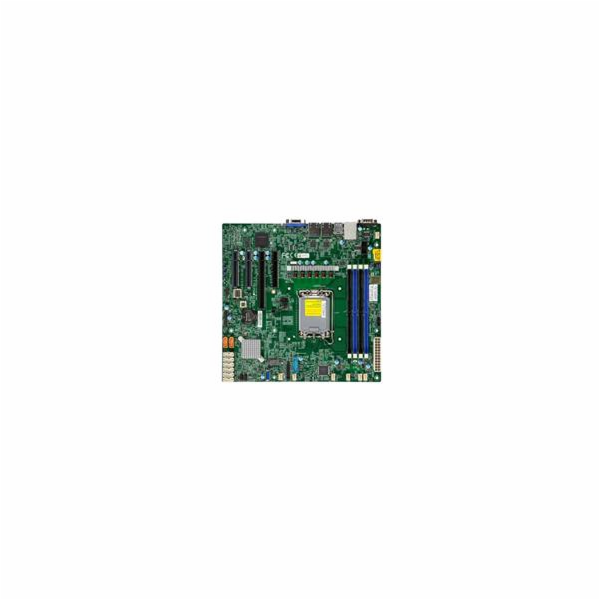

MBD-X13SCL-F
Physical Stats
Form Factor
microATX
Dimension
9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
Intel® Xeon® E-2400/Pentium®* Processor
Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
*Pentium® G7400 and G7400T
Core
Up to 8 cores
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MHz
Memory Type
4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel® C262
SATA
Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
1 Aspeed AST2600 BMC port(s)
Network Controllers
Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
8 SATA3 (6Gbps) port(s)
LAN
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
TPM
1 TPM Header
Expansion Slots
PCIe
2 PCIe 4.0 x4 (in x8 slot),
1 PCIe 5.0 x8,
1 PCIe 5.0 x8 (in x16 slot)
M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Management
Software
Redfish API , Supermicro Server Manager (SSM) , Supermicro Update Manager (SUM) , SuperDoctor® 5 , Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status, +3.3V standby
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
PECI
FAN
7x 4-pin fan headers (up to 7 fans)
Fan speed control
Overheat LED indication
7 fans with tachometer status monitoring
Other Features
WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
