MHL: ano
Video vstup: 1x
Audio vstup: 1x
Audio výstup: 1x
D-Sub 15-pin (VGA): 2x
HDMI (Typ A): 1x
USB-A: 1x USB-A 2.0
USB Micro-B: 1x USB 2.0 Micro-B
Síť (RJ 45): ano
Sériové rozhraní (RS 232): 1x
Integrovaný reproduktor: ano
Výkon reproduktoru (Watt): 2x 8
Dálkový ovládač: ano
zásobování energií: Síť
Max. životnost lampy (Hod): 20000
Max. produkce hluku (dB(A)): 33
Min. produkce hluku (dB(A)): 34
Fokus: manuální
Lens Shift: ano
Trapézová úprava: ano
Projekční technika: DLP
Zdroj světla: Laser
Přirozené rozlišení (Pixel): WUXGA (1920 x 1200)
Nativní poměr stran: 16:10
Jasnost obrazu (ANSI Lumen): 4000
Poměr kontrastu (x:1): 5000000
Poměr projekce (x:1): 1,21 - 1,59
Max. úhlopříčka obrazovky (m): 7,7
Min. uhlopříčka obrazovky (m): 0,74
Maximální projekční vzdálenost (m): 7,9
Min. vzdálenost projekce (m): 1.0
Barva: bílá
Šířka (mm): 337
Výška (mm): 108
Hloubka (mm): 265
Hmotnost (kg): 4.6
Montáž na strop možná: ano

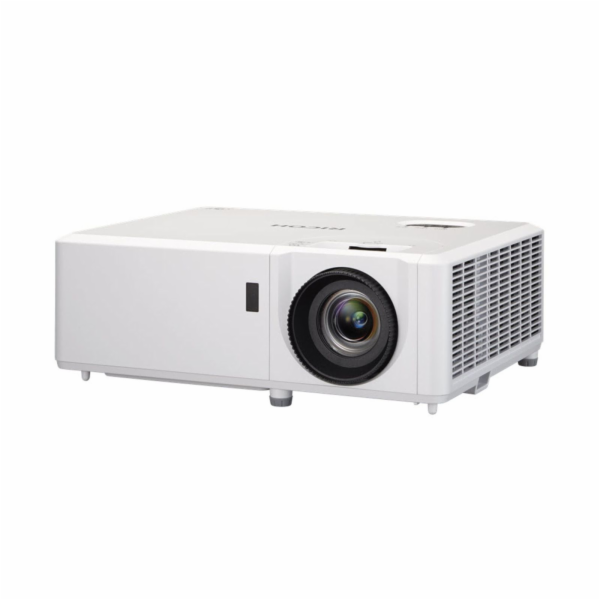

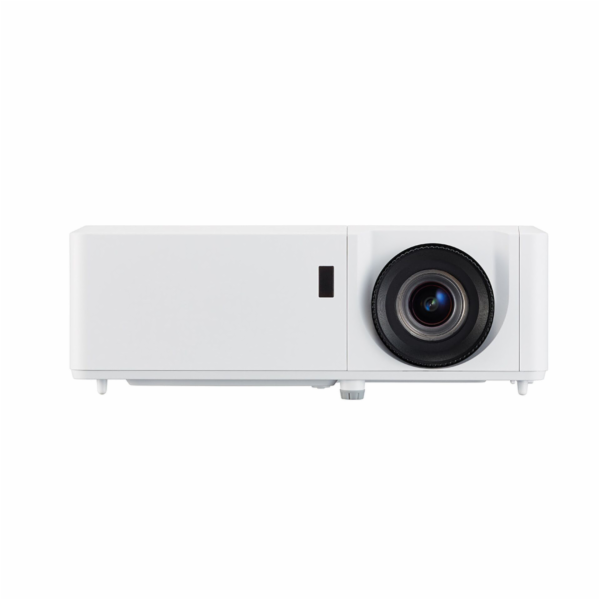

Ricoh DLP Laser Projector PJ WUL5860
For professional presentations in schools and businesses
The Ricoh PJ WUL5860 is a modern laser projector that has been specially developed for use in conference rooms, classrooms and public presentation environments. With its WUXGA resolution (1920 × 1200 px) in 16:10 format, it delivers razor-sharp and detailed images – ideal for presentations, infographics or videos. The powerful laser light source ensures consistently high image quality and virtually maintenance-free continuous operation for many years.
Brightness and durability in one
With 4,000 ANSI lumens of brightness, the PJ WUL5860 projects clear and highly visible content even in brightly lit rooms. The durable laser technology eliminates the need for traditional lamp replacement – and with up to 20,000 operating hours, the projector is particularly cost-efficient. The versatile connection options – including HDMI, VGA, LAN and USB – allow connection to almost any source, from laptops to media players.
Flexible installation and easy operation
Despite its compact dimensions, the projector offers practical functions such as vertical lens shift, digital keystone correction and 4-corner image alignment. The image size can be flexibly adjusted using the 1.3x zoom, which makes it easy to integrate into existing rooms. The optional Wi-Fi extension also enables wireless presentation, provided a compatible Wi-Fi module is used.
Solution for your presentation environment
Whether in daily lessons, in the boardroom or at events, the Ricoh PJ WUL5860 impresses with its reliability, image quality and user-friendliness. Thanks to its laser light source and solid workmanship, it is a future-proof solution for demanding presentation requirements, especially where durability and low maintenance are required.
Technical highlights at a glance
Suitable for business and education
Laser light source with up to 20,000 hours of service life
WUXGA resolution (1920 x 1200 pixels, 16:10 format)
4000 ANSI lumens brightness – ideal for bright environments
1.3x manual zoom for flexible image adjustment
Vertical lens shift (+10%) for flexible ceiling mounting
Digital keystone correction (horizontal/vertical) and 4-corner adjustment
Integrated stereo speakers (2x 8 watts)
Connections:
2x HDMI 2.0 / 1.4 (HDCP 2.2), with one port also supporting MHL 2.2
1x VGA (Mini D-Sub 15-pin) input, 1x output (pass-through)
1x composite video (RCA) input
Audio input: 1x 3.5 mm stereo mini jack, plus 1x microphone input
Audio output: 3.5 mm stereo mini jack
1x USB-A (5 V power output for devices) & 1x USB mini-B (service/firmware)
1x RS-232C (DB-9) for control
1x RJ-45 Ethernet (10/100 Mbit/s) for projector control (no media streaming)
Optional wireless presentation via WLAN module (not included)
Quiet operation: approx. 34 dB in standard mode
Robust housing, IP6X dustproof – suitable for continuous operation
360° installation option including portrait projection
