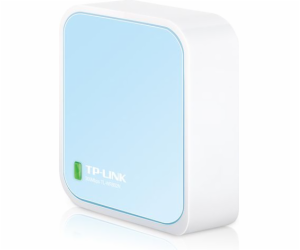

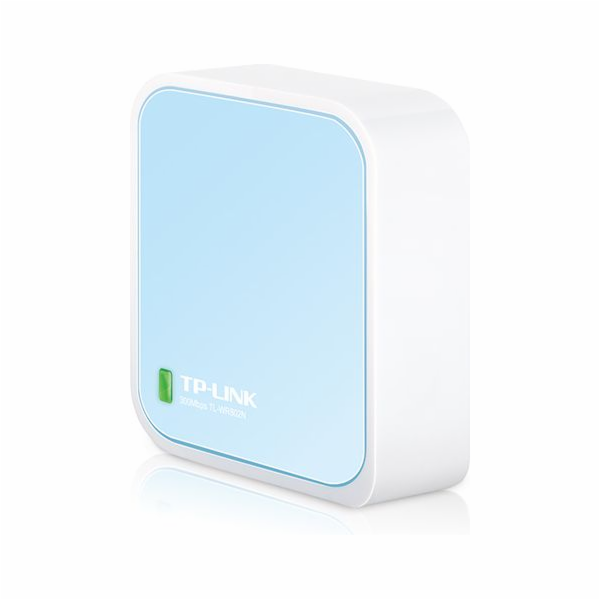

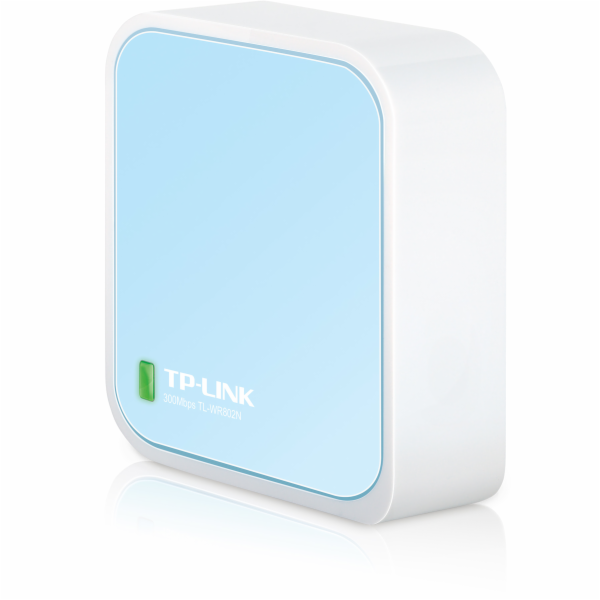

Bezdrátový router Wireless Nano N 300 Mbit/s
TL-WR802N
Bezdrátový přenos dat rychlostí až 300 Mbit/s je ideální pro streamování videa, online hraní her a VoIP
Kapesní velikost – ideální pro domácí použití a na cesty
Podporuje provozní režimy router, opakovač signálu, klient, AP a WISP
Flexibilní napájení prostřednictvím mikro USB portu z externího adaptéru nebo z počítače připojeného přes USB
Snadná instalace během chvilky
HARDWARE FEATURES
Interface
1 10/100Mbps WAN/LAN Port
1 Micro USB Port
1 Reset Button
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )
2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)
Antenna Type
On-Board
WIRELESS FEATURES
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
270M: -65dBm@10% PER
130M: -70dBm@10% PER
108M: -82dBm@10% PER
54M: -73dBm@10% PER
11M: -82dBm@8% PER
6M: -86dBm@10% PER
1M: -90dBm@8% PER
Transmit Power
CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Modes
Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode
Wireless Functions
Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security
64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
SOFTWARE FEATURES
Quality of Service
WMM, Bandwidth Control
WAN Type
Dynamic IP/Static IP/PPPoE/
PPTP/L2TP
Management
Access Control
Local Management
Remote Management
DHCP
Server, Client, DHCP Client List, Address Reservation
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
PPTP, L2TP, IPSec (ESP Head)
Access Control
Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-WR802N
Power Adapter
USB Cable
Ethernet cable
Quick Installation Guide
Resource CD
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 10/8.1/8/7
MAC®OS, NetWare®, UNIX® or Linux
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
