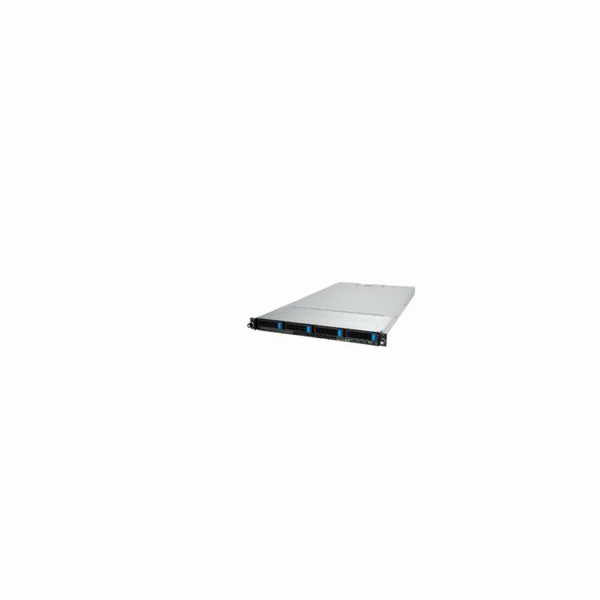

ASUS 1U RS501A-E12-RS4, 1xSP5 (LGA 6096) 24xDDR5 4xSATA/NVME/OCP/2x1G LAN/1,6KW

Processor / System Bus


1 x Socket SP5 (LGA 6096)
5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 360W)



Memory


24 x DIMM slots

with AMD EPYC™ 9005 series processors
DDR5 6400/5600 RDIMM/3DS RDIMM
Maximum 3,072GB
2DPC (1 of 2) up to 5200 with "6400 RDIMM", other 4800
2DPC (2 of 2, 1R+1R ) up to 4400, with "6400 RDIMM", other 4000
2DPC (2 of 2, 2R+2R ) up to 4000, with "6400 RDIMM", other 3600

with AMD EPYC™ 9004 series processors
DDR5 4800 RDIMM/ 3DS RDIMM
Maximum 3,072GB
2DPC (1 of 2) up to 4800,
2DPC (2 of 2, 1R+1R ) up to 4000
2DPC (2 of 2, 2R+2R ) up to 3600


* Refer to  support page  for more information



Expansion Slots


Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)



Storage


Storage Controller  :
CPU Integrated
Optional kits Controller  :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card



Drive Bays


Front bays:
4 x 3.5"/2.5” Hot-swap Storage Bays
4 x NVMe/SATA/SAS

*MCIO CABLE is required to support
  NVMe hard drives
*SAS support only from optional SAS
  HBA/RAID card

2 x M.2 connectors



Networking


1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port



Graphic


Up to 2 single-slot GPU cards



Multi-GPU Support


Please find the latest GPU support from  https://servers.asus.com/support/GPU



Front I/O Ports


2 x USB 3.2 Gen1 ports
1 x VGA port



Rear I/O Ports


2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports



Switch/LED


Front :
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x HDD LED
4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
Rear :
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED



OS Support


Please find the latest OS support from  https://servers.asus.com/support/os



Management Solution


ASUS Control Center
ASUS ASMB11-iKVM (on-board)



Regulatory Compliance


BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®



Dimensions


842.5mm x 449mm x 43.85mm (1U)
33.17" x 17.68" x 1.73"



Form Factor


1U



Weight


(approximate)
Net Weight: 13.15 kg
Gross Weight: 18.15 kg



Power Supply


1+1 Redundant 1600W 80 PLUS Titanium
Power Supply
1+1 Redundant 1200W 80 PLUS Platinum
Power Supply



Environment


Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)

Note
Operating Temperature based on configurations



Optional Items


Rail Kit:
Tool-less Friction Rail Kit
1.2m Half Extension Ball bearing Type Rail Kit
1m Half Extension Ball bearing Type Rail Kit
1U Height Full Extension Ball bearing Type Rail Kit
*Please consult sales if cable arm needed.
1U Front Bezel



Note


Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
