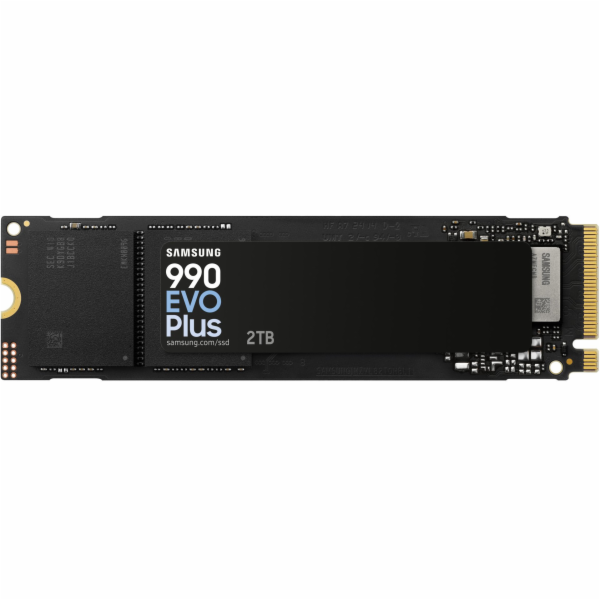

Samsung SSD 990 EVO Plus 2000GB

Model Code
MZ-V9S1T0BW


Attribute
Value


General Feature
Application
Client PCs


Capacity
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)


Form Factor
M.2 (2280)


Interface
PCIe 4.0 x4 / 5.0 x2 NVMe™ 2.0


Dimension (WxHxD)
Max 80.15 x Max 22.15 x Max 2.38 mm


Weight
Max 9.0g Weight


Storage Memory
Samsung V-NAND TLC


Controller
Samsung in-house Controller


Cache Memory
HMB(Host Memory Buffer)


Special Feature
TRIM Support
Supported


S.M.A.R.T Support
Supported


GC (Garbage Collection)
Auto Garbage Collection Algorithm


Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)


WWN Support
Not supported


Device Sleep Mode Support
Yes


Performance
Sequential Read
Up to 7,150 MB/s * Performance may vary based on system hardware & configuration


Sequential Write
Up to 6,300 MB/s * Performance may vary based on system hardware & configuration


Random Read (4KB, QD32)
Up to 850,000 IOPS * Performance may vary based on system hardware & configuration


Random Write (4KB, QD32)
Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration


Environment
Average Power Consumption (System Level)
Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration


Power Consumption (Idle)
Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration


Power Consumption (Device Sleep)
Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration


Allowable Voltage
3.3 V ± 5 % Allowable voltage


Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)


Operating Temperature
0 - 70 ? Operating Temperature


Shock
1,500 G & 0.5 ms (Half sine)


Accessories
Installation Kit
Not Available


Software
Management SW
Magician Software for SSD management


Warranty
5-year Limited Warranty or 600TBW Limited Warranty
