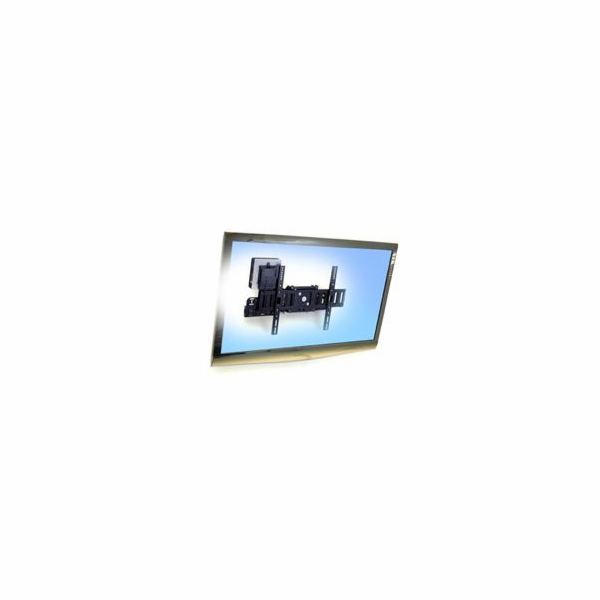

ERGOTRON SIM90 Signage Integration Mount - nástěnný držák naklápěcí/otočný pro 32" a větší LCD

ERGOTRON SIM90 Signage Integration Mount - nástěnný držák naklápěcí/otočný pro 32"+ a větší LCD

Complete, fully integrated, all-in-one mounting system includes all components for installing large display digital signage solutions

Simplifies digital signage installation with preassembled components; no need for additional equipment

Flexible deployment options to accommodate your digital signage messaging and space requirements; portrait-to-landscape orientation, scalable for future hardware refreshes

Easy, do-it-yourself portrait or landscape adjustment—no need to reinstall display; knobs are available for locking tilt orientation in place

Security fasteners deter theft to protect your investment

Conveniently attaches VESA-compliant (75 x 75 or 100 x 100 mm) thin client CPU to the back of the display

Single SKU design fits most screens from 32" and larger up to 105 lbs (47.6 kg)

Cable management system conceals and organize cables

Description: SIM90 Digital Signage Integration Mount (black)
Includes wall and display brackets, quick-release VESA-CPU mount/power brick bracket, hardware fastener kit
† Ideal for 32" and larger displays up to 105 lbs (47.6 kg). Total weight capacity is 115 lbs (52.2 kg): 105 lbs (47.6 kg) for display, 7 lbs (3.2 kg) for CPU, 3 lbs (1.4 kg) for cables and power brick
‡ Tilt: Smooth continuous display tilt range from 0° to 15° forward; Tilt range may be restricted when displays are in portrait mode

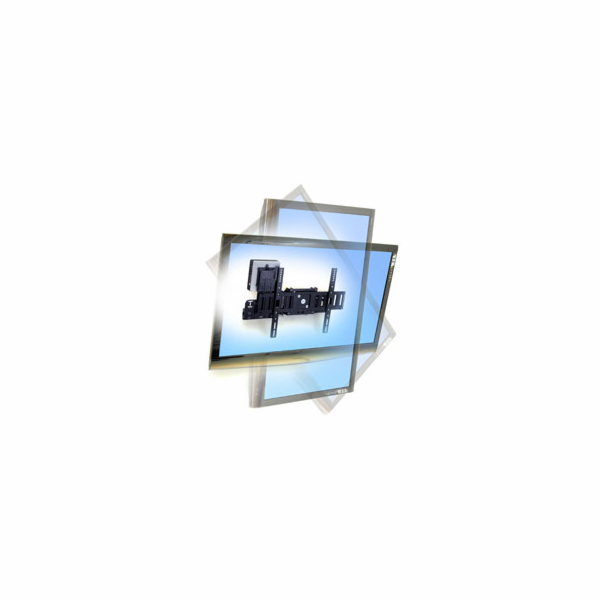

* Easily rotate display to either a portrait or landscape orientation without removing the display
** Mounting Hole Patterns: Horizontal measurement = 200 mm, 300 mm, 400 mm, 440 mm, 500 mm or 600 mm. Vertical measurement = 200 mm or 225 mm–400 mm. With optional 800 mm Accessory Kit (97-489, ordered separately), horizontal measurement can be expanded to 800 mm or 660 mm
Portrait or landscape orientation may be dependant on content software or graphic card capabilities
Complete wall mount solution for digital signage applications
Easily attaches VESA-compliant (75/100 mm) thin client CPU: CPU must have either 75 x 75 mm or 100 x 100 mm mounting holes on one side
Maximum CPU size (W x H x D) = 13.5" x 10" x 2.6" (34.3 x 25.4 x 6.6 cm), up to 7 lbs (3.2 kg). Power brick maximum weight = 3 lbs (1.4 kg)
Mounting Options: Includes hardware for mounting to wood studs (16" centered studs) or concrete wall surfaces
Includes screws to secure display for theft deterrence
Display can be positioned at different points on the wall bracket; this lateral shift of the display’s position relative to the wall studs can be as much as 5.7" (14.5 cm)
Profile off the wall: 4.8" (12 cm)
Note: Portrait orientation is not recommended for some plasma displays. Contact display manufacturer if you have questions regarding your plasma’s portrait-mode capability (this is not an issue with LCD technology)
Shipping Dimensions: 13.25"W x 12"H x 28.5"D (33.7 x 30.5 x 72.4 cm)
Shipping Weight: 24 lbs (11 kg)
