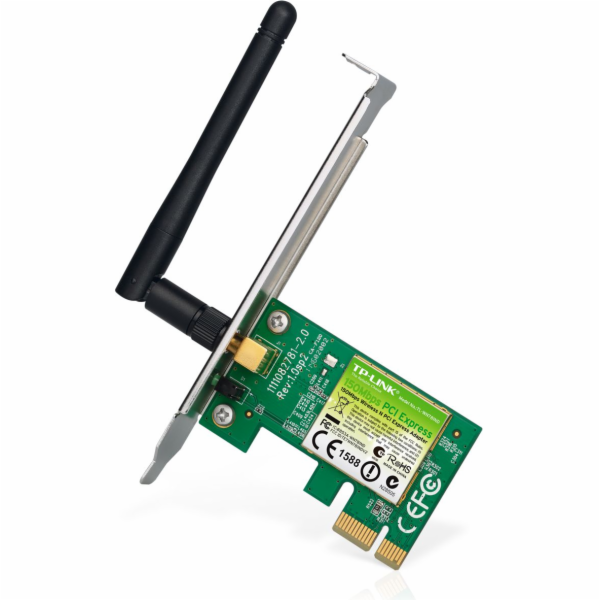

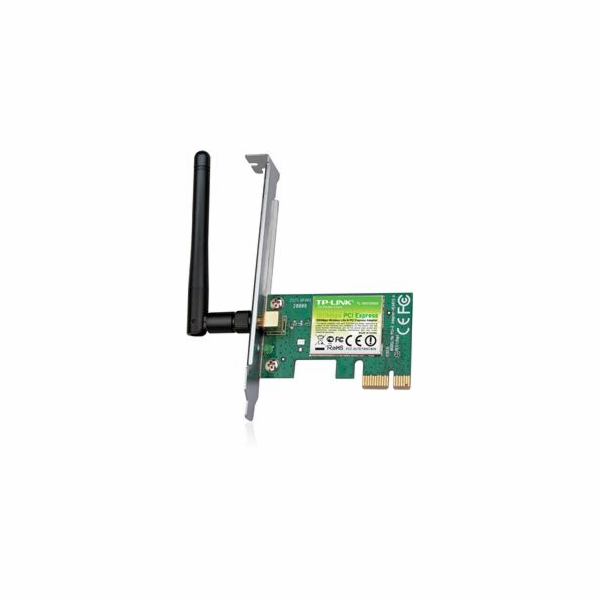

Síťová karta TP-Link TLWN781ND

Bezdrátový PCI Express adaptér 150 Mbit/s
TL-WN781ND

Rychlost bezdrátového přenosu dat až 150 Mbit/s
Poskytuje rozhraní PCI Express
Pokročilé zabezpečení připojení pomocí šifrování WPA/WPA2
Přiložená utilita umožňuje snadnou správu


HARDWARE FEATURES



Interface
PCI Express

Dimensions ( W x D x H )
4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)

Antenna Type
Detachable Omni Directional (RP-SMA)

Antenna Gain
2dBi


WIRELESS FEATURES



Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency
2.400-2.4835GHz

Signal Rate
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmit Power
<20dBm(EIRP)

Wireless Modes
Ad-Hoc / Infrastructure mode

Wireless Security
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK

Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM


OTHERS



Certification
CE, FCC, RoHS

Package Contents
Wireless Adapter
Detachable Omni directional antenna
Resource CD
Quick Installation Guide

System Requirements
Windows 8.1/8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
