Wiha Measuring Clamp up to 1.000V

Typ ochrany: IP40
Displej: LCD
vypínací automatika: ano
Napětí (V): AC: 0-1000 / DC: 0-1500
Typ měření: True RMS
Typ baterie / aku: AAA (Micro)
Potřebný počet: 2
Způsob provozu: Baterie
Typ: Klešťový měřič proudu
Barva: Červená / žlutá
Materiál: Plast

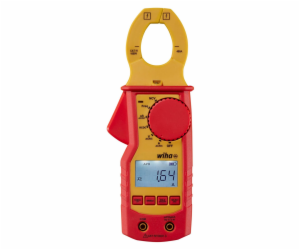

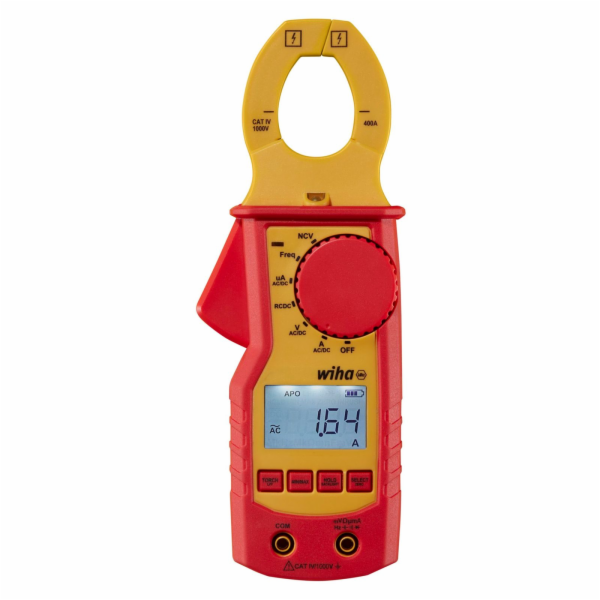

Wiha current clamp up to 1,000 V AC, CAT IV
The current measuring clamp from Wiha is a practical tool for working on electrical installations. It can measure current with the clamp fork without breaking the circuit. It can perform various measurements with the test probes: AC and DC voltage, resistance, frequency and capacitance. It can also do continuity tests and diode tests. It has a large LCD display with backlight and data hold function for the measurement results. It has a beep for continuity testing. The current clamp offers disturbance-free RMS values for safe testing with the LPF function and the True RMS function. It has a measurement category of CAT IV up to 1,000 V for work on low-voltage sources.
Features:
One measuring device for all relevant electrician tests. Simple one-hand test without interrupting the circuit Measurement of live wires without open contacts Large LCD display with backlight Integrated torch function  LPF and TRUE-RMS measurement for precise test results IP40 CAT IV 1.000 V

Technical data:
Voltage V DC min - max: 0 - 1500 Voltage V AC min - max: 0 - 1000 Current A DC: 400 Current A AC: 400 Resistance (M?): 40 M? Integrated flashlightYes Frequency (MHz): 5 MHz True RMS Backlight Data HOLD Min measurement Max measurement Measurement category: CAT IV 1,000 V Non-contact voltage test Incl. batteries (2x AAA) AVG measurement Continuity test: < 30 ? Total length: 220 mm Capacitance (µF): 100 µF
