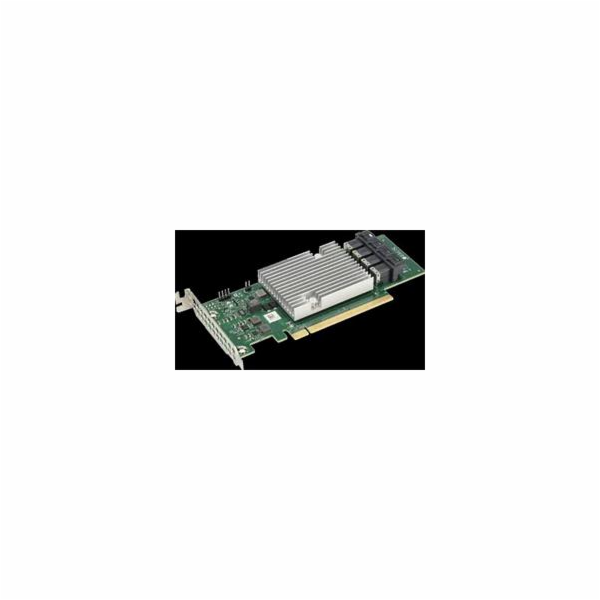

Supermicro AOC-S3616L-L16iT Supermicro 12Gb/s 16-port SAS Internal Host Bus Adapter

Supermicro 12Gb/s Sixteen-Port SAS/SATA Internal Host Bus Adapter

The Supermicro HBA  AOC-S3616L-L16iT  features 16 internal direct-attached SAS/SATA connections with four Mini SAS HD connectors and the HBA delivers high performance by utilizing PCI-E Gen3 x16.

Key Benefits

High Performance


Offers over 1.7 Million IOPs
Delivers close to 12GB/s throughput


High Port Account Supportability



The HBA supports up to 240 storage device connections in IT mode


Ease of Management


HBA management is done through sideband IPMI utilities












Key Features








Broadcom 3616 SAS3 controller
16-port (internal), 12Gb/s per port
Supports JBOD and up to 240 devices
Automatically negotiates PCI-E (1x, 2x and 3x) link widths
Power management support
Supports 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Zoning capability w/ SAS3 expanders
OS Support : Windows Server 2012, Windows 8.x, Windows 10, Windows Server 2016, Windows Vista, FreeBSD, RedHat and SUSE Linux
Processor at 1.2 GHZ
Power: 15.1 Watts
Uses 4 MiniSAS HD (SFF-8643) connectors
Operating Temp: 10° to 55°C












Dimensions and Weight





L x W
2.7" x 6.1"


Weight
0.5 lbs
