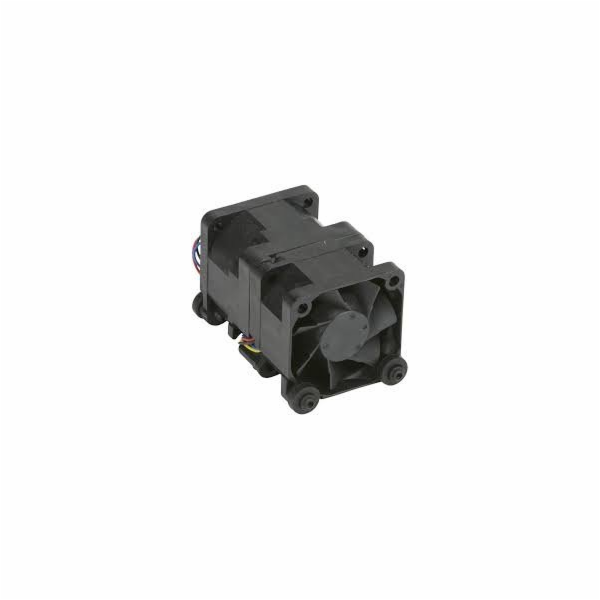

Nidec (R40W12BS5AC-65T07A3) FAN-0086L4 is a standard fan for CSE-113MTS, CSE-113TS, and CSE-815TS series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Manufacturer
Nidec
Fan Size
40mm
Rated Fan Speed
12000 RPM [Inlet] / 11000 RPM [Outlet]
Acoustic Noise Level
56 dBA
Maximum Airflow Rate
24 CFM
Rate Current (A)
0.8A
Connector
4 Pin
Dimensions
40L x 40H x 56W (mm)
Validated Chassis
CSE-113TQ-563CB, CSE-113TQ-563UB, CSE-113TQ-600CB, CSE-113TQ-600UB, CSE-113TQ-600WB, CSE-113TQ-700CB, CSE-113TQ-700UB, CSE-113TQ-R500CB, CSE-113TQ-R500UB, CSE-113TQ-R700CB, CSE-113TQ-R700UB, CSE-113TQ-R700WB, CSE-815TQ-563CB, CSE-815TQ-563UB, CSE-815TQ-600CB, CSE-815TQ-600UB, CSE-815TQ-600WB, CSE-815TQ-710UB, CSE-815TQ-720CB, CSE-815TQ-720UB, CSE-815TQ-R500CB, CSE-815TQ-R500UB, CSE-815TQ-R500WB, CSE-815TQ-R654CB, CSE-815TQ-R700CB, CSE-815TQ-R700UB, CSE-815TQ-R700WB, CSE-LB16AC2-R706AW
Search Terms
B8-04056CNI-024C006, A8-04056CNI-004C001, R40W12BS5AC-65T07A3
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
