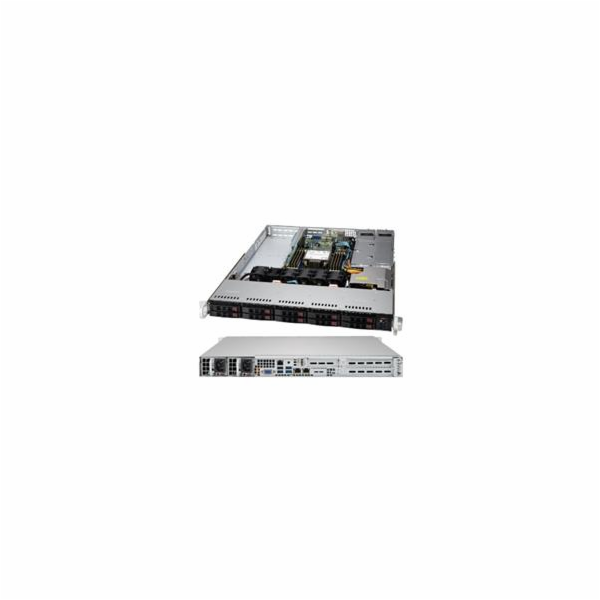

SUPERMICRO 1U chassis 10x U.2 HS NVMe (4x SATA/SAS), 2x 750W, WIO

Product SKUs

CSE-116AC10-R706WB3 SuperChassis 116AC10-R706WB3



Form Factor

1U Chassis, Support proprietary WIO MB size 8?x13? and up to 12.3?x13?



Processor Support

Dual, single Intel® / AMD processors



Dimensions

Height 1.7" (43 mm)

Width 17.2" (437 mm)

Depth 23.5" (597 mm)

Gross Weight 40 lbs (18.14 kg)

Packaging (W x H x L) 24" (610 mm) x 8" (203 mm) x 32" (813 mm)

Available Color Black



Expansion Slots

2 full height expansion slot(s)
1 low-profile expansion slot(s)



Drive Bays

10 x 2.5" hot-swap SAS3/SATA drive bay



Backplane

10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible.



Front Panel

Buttons Power On/Off button
Unit Identification (UID) button

LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Unit Identification (UID) LED







Systems Cooling

Fans 4 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fans for AOC cooling



System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
Power Efficiency 94%

Total Output Power and Input 700W with Input 100 - 140Vac
750W with Input 200 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 320 x 54.5 x 40.25 mm

Output Type Backplanes (gold finger)

+12V Max: 58A / Min: 0.5A (100Vac - 140Vac)
Max: 62A / Min: 0.5A (200Vac - 240Vac)

+5Vsb Max: 3A / Min: 0A

Power Distributor PDB-PT112-S2424
O/P: 12V/54
+5V Max: 25
+3.3V Max: 25
-12V Max: 0.6

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
