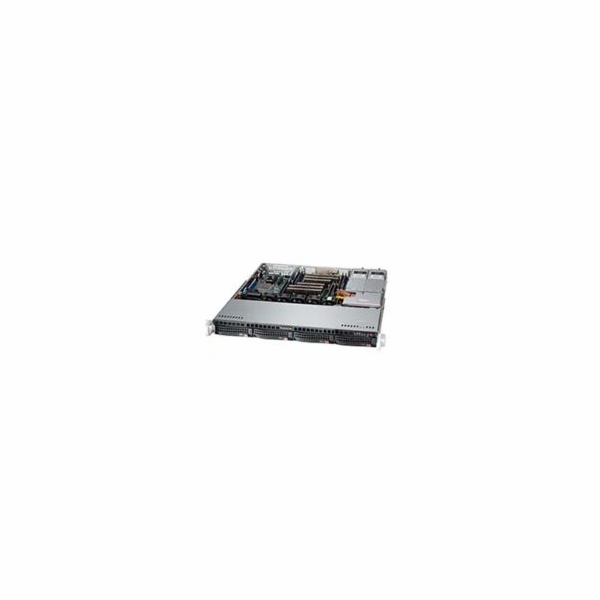

SUPERMICRO 1U chassis 4x 3,5" HS SAS/SATA, 2x600W (Platinum)

Product SKUs


SuperChassis  813MFTQ-R606CB







Form Factor




1U chassis, support motherboard sizes: ATX 12" x 10" and Micro ATX 9.6" x 9.6"









Processor Support




Dual and Single Intel® and AMD processors









Dimensions


Height


1.7" (43 mm)




Width


17.2" (437 mm)




Depth


19.85" (503 mm)




Gross Weight


33.5 lbs (15.2 kg)




Packaging (W x H x L)


23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)




Available Color


Black









Expansion Slots




1x Full-height expansion slot(s)









Drive Bays




4x 3.5" hot-swap SAS/SATA drive bay
SAS or enterprise SATA HDD only recommended









Backplane




4-Port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD









Peripheral Drives




1x slim DVD-ROM drive bay
Optional 1x USB + COM port tray









Front Panel


Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
System Information LED
2 Network Activity LEDs























Systems Cooling


Fans


Optional 2x fans for AOC cooling
4x 40x28mm PWM fan(s)









Operating Environment (System)


Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)









Power Supply


1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40


Power Efficiency


94%




Total Output Power and Input


600W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


220 x 54.5 x 40.25 mm




Output Type


Backplanes (gold finger)




+12V


Max: 50A / Min: 0.5A (100Vac - 240Vac)




+5Vsb


Max: 3A / Min: 0A




Power Distributor


PDB-PT813M-2424
O/P: 120/62
+5V Max: 25A
+3.3V Max: 25A
-12V Max: 0.6A




Certification


   Platinum Certified









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
