Product SKUs

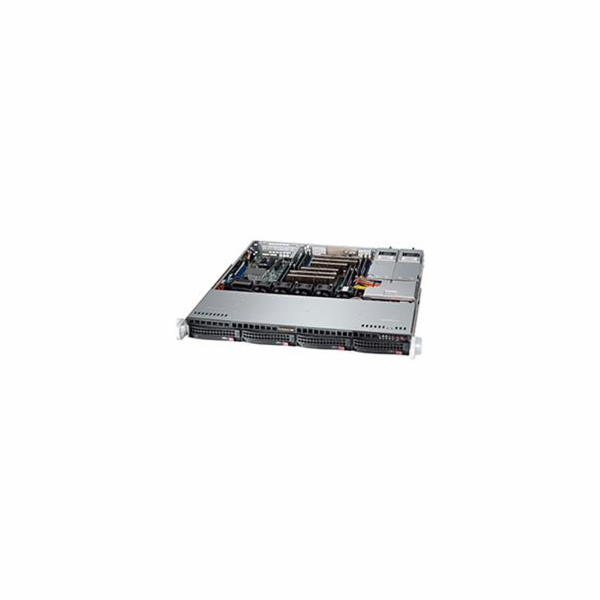

CSE-813MF2TQC-505CB SuperChassis 813MF2TQC-505CB
Form Factor
1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
Processor Support
Dual, single Intel® / AMD processors
Dimensions
Height 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 19.98" (507 mm)
Net Weight N/A lbs (N/A kg)
Gross Weight 31 lbs (14.06 kg)
Packaging (W x H x L) 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)
Available Color Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA drive bay with SES2
Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5
Peripheral Drives
Optional 1 x Slim DVD-ROM Drive
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED
Systems Cooling
Fans 4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
Power Efficiency 93%
Total Output Power and Input 500W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 180 x 100 x 40 mm
Output Type 24pin ATX
-12V Max: 0.2A / Min: 0A
+12V Max: 41A / Min: 0.5A (100Vac - 240Vac)
+5V Max: 15A / Min: 0.2A
+3.3V Max: 12A / Min: 0.2A
+5Vsb Max: 3A / Min: 0A
Certification Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CD-ROM & Accessory CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
Cooling Fan & Accessory MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm
Power Supply & Accessory PWS-505P-1H 1 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05"
Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
Mounting Rail(s) MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
Optional Parts List
Part Number Qty Description
Peripheral Drive(s) DVM-PNSC-DVD-SBT3 - Black slim SATA DVD (8x DVD, 24x CDR), Panasonic
Air Shroud MCP-310-19009-0N - SC811, SC111, SC813M, SC113M, SC512F-280/350/410/520/600, SC513L-410/420, DP X9DBL ,X9 Mylar Air Shroud, 12"x10" MB
Air Shroud MCP-310-19015-0N - SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12"x10" MB,RoHS/REACH
Adaptor Bracket MCP-120-00031-0N - Riser card bracket for SC812,813,813M,815,111,113,113M
Rail MCP-290-00056-0N - Short outer rail, /quick, optional for 1U 17.2
Peripheral Drive(s) MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Peripheral Drive(s) MCP-220-83601-0B - Black FDD dummy tray support 1x 2.5
Peripheral Drive(s) MCP-220-00110-0B - Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF
HDD Tray Converter MCP-220-00043-0N - Black hotswap gen 4 3.5 to 2.5 HDD tray
Mounting Rail CSE-PT52L - Sliver chassis rail set for SC813M,515,113M
Front Bezel CSE-PTFB-813LB - BLACK SC813 FRONT BEZEL, PB FREE
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4 - BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
Motherboard (for CSE- 813MF2TQC-505CB)
X11DPL-i
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Servers (for CSE- 813MF2TQC-505CB)
6019P-MT
