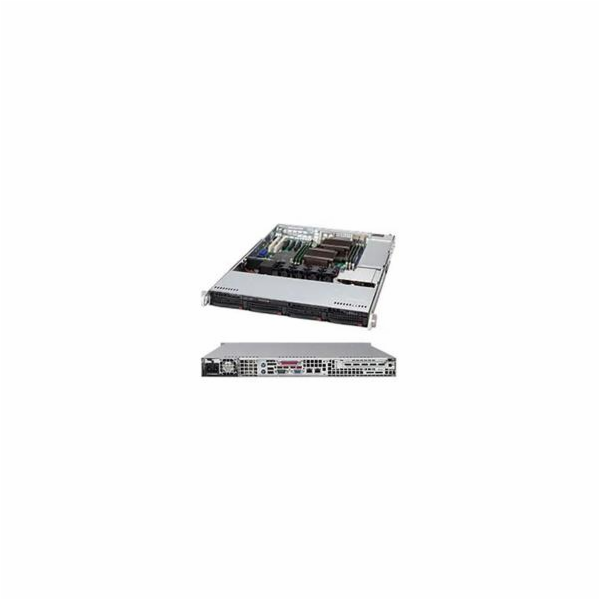

SUPERMICRO 1U chassis 4x 3,5" HS SAS/SATA, 600W (80PLUS Platinum),

Product SKUs


SuperChassis  815TQ-600CB







Form Factor




1U chassis support for motherboard size 13.68" x 13" and ATX 12" x 10", E-ATX 12" x 13"









Processor Support




Dual and Single Intel® and AMD processors









Dimensions


Height


1.7" (43 mm)




Width


17.2" (437 mm)




Depth


25.6" (650 mm)




Gross Weight


36 lbs (16.33 kg)




Packaging (W x H x L)


23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm)




Available Color


Black









Expansion Slots




1x Full-height, Full-length expansion slot(s) (Riser Card Required)









Drive Bays




4x 3.5" hot-swap SAS/SATA drive bay with SES2
SAS or enterprise SATA HDD only recommended









Backplane




4-Port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD









Peripheral Drives




Optional 1x Slim DVD-ROM Drive









Front Panel


Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
2 Network Activity LEDs
Fan Fail/System Over Heat LED























Systems Cooling


Fans


Optional 2x fan for PCI card cooling
4x 4cm heavy duty counter-rotating with optimal fan(s) speed control









Operating Environment (System)


Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)









Power Supply


1U 600W platinum efficiency multiple output power supply w/PMBus


Power Efficiency


92%




Total Output Power and Input


600W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


279.4 x 76 x 40.4 mm




Output Type


24pin ATX




-12V


Max: 0.5A / Min: 0A




+12V


Max: 49A / Min: 0.5A (100Vac - 240Vac)




+5V


Max: 18A / Min: 0.5A




+3.3V


Max: 15A / Min: 0.5A




+5Vsb


Max: 3A / Min: 0A




Certification


   Platinum Certified









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
































Motherboard (for CSE-815TQ-600CB)


Motherboard Name



X9DRD-LF X9DRD-iF X9DRD-EF X9DRD-7LN4F-JBOD X9DRD-7LN4F X8DTN+-LR X8DTN+
