Product SKUs

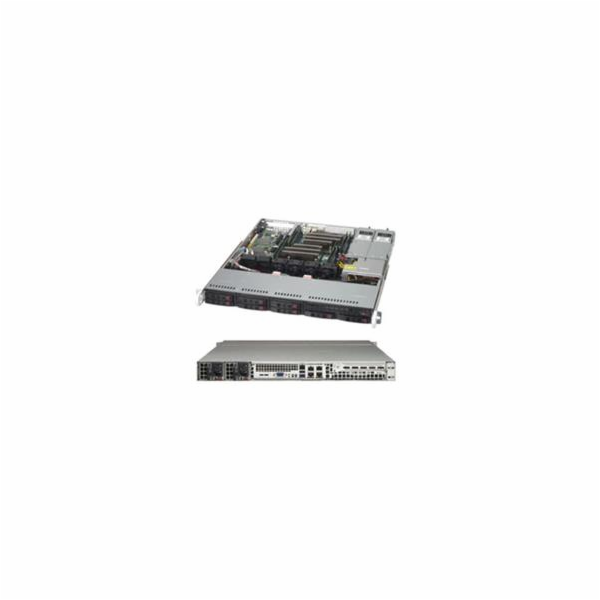

CSE-113MFAC2-R606CB SuperChassis 113MFAC2-R606CB
Form Factor
1U Chassis, support motherboard size: ATX 12" x 10"
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 19.98" (507 mm)
Gross Weight 30 lbs (13.61 kg)
Packaging (W x H x L) 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm)
Available Color Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
8 x 2.5" hot-swap SAS/SATA drive bay
Backplane
8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Systems Cooling
Fans 4 x 40x28mm PWM fan(s)
Optional 2 x fans for AOC cooling
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40
Power Efficiency 94%
Total Output Power and Input 600W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 220 x 54.5 x 40.25 mm
Output Type Backplanes (gold finger)
-12V Max: NAA
+12V Max: 50A / Min: 0.5A (100Vac - 240Vac)
+5Vsb Max: 3A / Min: 0A
+12Vsb Max: NAA
Power Distributor PDB-PT813M-2424
O/P: 120/62
+5V Max: 25
+3.3V Max: 25
-12V Max: 0.6
Certification Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
HD Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Cable(S) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Cable(S) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CD-ROM & Accessory MCP-290-00036-0B 1 Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Front Panel FPB-FP112 1 Front control board for SC113,113M (U/C share
Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M)
Drive Tray(s) MCP-220-00047-0B 8 Black gen 3rd hot-swap 2.5inch HDD tray
Power Distributor PDB-PT813M-2424 1 Power Distributor With 24pin for SC813M
Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm
Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Part(s) MCP-290-00037-0N 1 SC113 Control panel module (w/o DVD)
Power Supply & Accessory MCP-250-00016-0V 1 Redundant Silver plastic PDB cover for SC813M,113M
Power Supply & Accessory PWS-606P-1R 2 1U 600W Redundant Short Depth High Efficiency Power Supply
Mounting Rail(s) MCP-290-00102-0N 1 Outer rail, quick-release type, 25.6" to 33.05"
Mounting Rail(s) MCP-290-00107-0N 1 Inner rail, front, short, screw type
Mounting Rail(s) MCP-290-00110-0N 1 Inner rail, extension (quick) for 1U 17.2
Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS
Optional Parts List
Part Number Qty Description
Air Shroud MCP-310-19007-0N - SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
Air Shroud MCP-310-19009-0N - SC811, SC111, SC813M, SC113M, SC512F-280/350/410/520/600, SC513L-410/420, DP X9DBL ,X9 Mylar Air Shroud, 12"x10" MB
Air Shroud MCP-310-19015-0N - SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12"x10" MB,RoHS/REACH
2.5" HDD Bracket MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Tray(s) MCP-220-00087-0B - Black USB tray for slim DVD bay
Motherboard (for CSE- 113MFAC2-R606CB)
X10SRH-CF X10SRH-CLN4F X10DRL-CT X10DRL-iT
X10DRL-C X11SSH-F X11SSH-LN4F X11SSi-LN4F
X11SSL-F X11SSL-CF X11SSL-nF X11SSL
X11SSM-F X11SSM X11SSH-CTF X11SSH-TF
X10SRM-TF X10SRM-F X11SSH-GTF-1585 X11SSH-GF-1585
X11SSH-GTF-1585L X11SSH-GF-1585L
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Servers (for CSE- 113MFAC2-R606CB)
1028R-MCTR
