Product SKUs

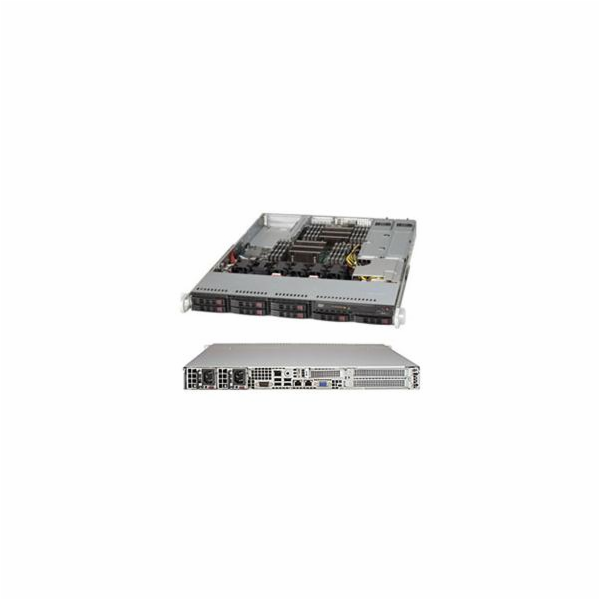

CSE-113AC2-R706WB2 SuperChassis 113AC2-R706WB2
Form Factor
1U rackmount chassis, support for motherboard size: 12" x 13" E-ATX
Optimized for X11 WIO (W series) motherboards
Processor Support
Dual Intel® and AMD processors
Dimensions
Height 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 23.5" (597 mm)
Gross Weight 37 lbs (16.78 kg)
Packaging (W x H x L) 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm)
Available Color Black
Expansion Slots
2 full height expansion slot(s) (Riser Card Required)
1 low-profile expansion slot(s) (Riser Card Required)
Drive Bays
8 x 2.5" hot-swap SAS/SATA drive bay
SAS or enterprise SATA HDD only recommended
Backplane
8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Peripheral Drives
1 x slim DVD-ROM drive bay
Optional 1 x Slim DVD-ROM Drive
Front Panel
Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button
LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Systems Cooling
Fans 4 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fan for PCI card cooling
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
Power Efficiency 94%
Total Output Power and Input 700W with Input 100 - 140Vac
750W with Input 200 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 320 x 54.5 x 40.25 mm
Output Type Backplanes (gold finger)
+12V Max: 58A / Min: 0.5A (100Vac - 140Vac)
Max: 62A / Min: 0.5A (200Vac - 240Vac)
+5Vsb Max: 3A / Min: 0A
Power Distributor PDB-PT112-S2424
O/P: 12V/54
+5V Max: 25
+3.3V Max: 25
-12V Max: 0.6
Certification Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
Air Shroud MCP-310-19002-0N 1 SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
HD Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
CD-ROM & Accessory MCP-290-00036-0B 1 Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Fan(s) FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Front Panel FPB-FP112 1 Front control board for SC113,113M (U/C share
Cooling Fan & Accessory CSE-PT0135 1 FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00047-0B 8 Black gen 3rd hot-swap 2.5inch HDD tray
Power Distributor PDB-PT112-S2424 1 WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
Part(s) MCP-290-00037-0N 1 SC113 Control panel module (w/o DVD)
Part(s) MCP-120-00030-0N 1 Blank LP L-bracket (1 raw of capsule hole)
Part(s) MCP-120-00053-0N 2 Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
Power Supply & Accessory PWS-706P-1R 2 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
Power Supply & Accessory MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
Mounting Rail(s) MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Rear Window MCP-240-00098-0N 1 WIO rear window for SC113,SC116, SC815 Redundant PWS
Optional Parts List
Part Number Qty Description
Tray(s) MCP-220-00087-0B - USB tray for 113 chassis
Cable CBL-0179L - SATA CABLE 70CM FLAT S-S PBF. 26AWG
Adapter Cable CDM-SATA - mini-SATA to SATA adapter for slim DVD
Peripheral Drive(s) DVM-TEAC-DVD-SBT - Black slim SATA DVD, TEAC
Mounting Rail MCP-290-00056-0N - Short outer rail, /quick, optional for 1U 17.2
Mounting Rail MCP-290-00052-0N-BULK - Outer rail, /quick, optional for 1U 17.2
