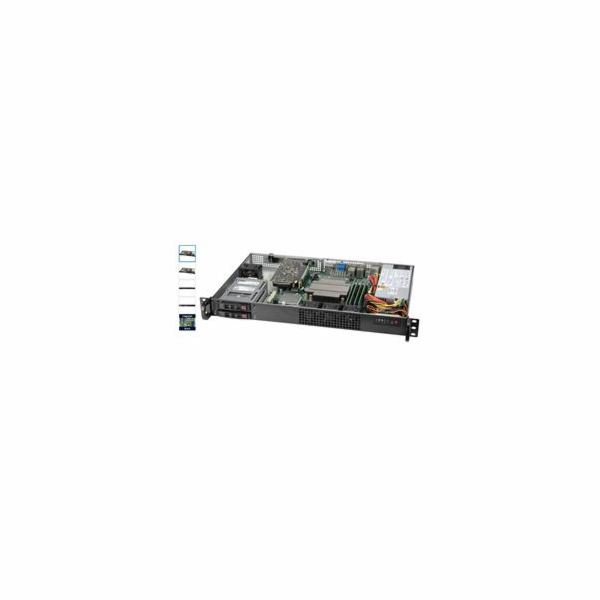

SUPERMICRO 1U server 1x LGA1200, , 4x DDR4 ECC, 2x 2.5" HS SAS/SATA, 200W (80+ Platinum), IPMI

Product SKUs


SuperServer  SYS-110C-FHN4T







Motherboard


Super X12SCZ-TLN4F







Processor


CPU


Single Socket H5 (LGA-1200)
10th/11th Gen Intel® Core™ i9/i7/i5/i3, Intel® Xeon® W-1200 processors




Core Count


Up to 10C/20T; Up to 20MB Cache




Note


Supports 35W - 80W TDP CPUs (Air Cooled)









System Memory


Memory


Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 128GB 2933MT/s ECC DDR4 UDIMM
View Memory Options




Memory Voltage


1.2V









On-Board Devices


SATA


SATA (6Gbps) ; RAID 0/1 support




Chipset


Intel® W480E




Network Connectivity


2 RJ45 1GbE
2 RJ45 10GBASE-T
View AOC Options









Input / Output


LAN


1 RJ45 1 GbE Dedicated IPMI LAN port(s)
2 RJ45 10 GBASE-T LAN port(s)
2 RJ45 1 GbE LAN port(s)




USB


4 Type-A port(s)




Video


1 VGA port(s)
1 DVI-D port(s)
2 DisplayPort port(s)




DOM


1 Super DOM  (Disk on Module) port(s)









Management


Software


SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!




Power configurations


Power-on mode for AC power recovery
ACPI Power Management









Security


Hardware


Trusted Platform Module (TPM) 2.0




Features


Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
System Lockdown









PC Health Monitoring


CPU


Monitors for CPU Cores, Chipset Voltages, Memory




FAN


Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors




Temperature


Monitoring for CPU and chassis environment
CPU thermal trip support, PEPI
