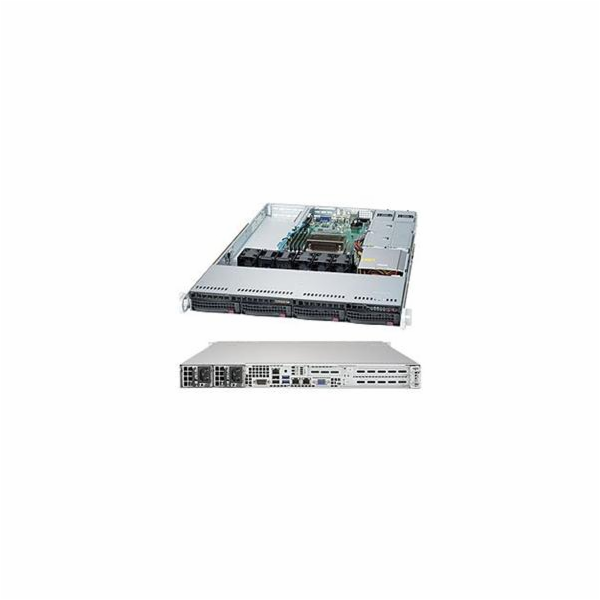

SUPERMICRO 1U server 1x LGA3647, iC622, 6x DDR4 ECC reg, 4x 3.5" HS SATA3, 600W (80+ Platinum), IPMI, WIO

Product SKUs

SYS-5019P-WT SuperServer 5019P-WT (Black)



Motherboard


Super X11SPW-TF


Processor/Cache

CPU Single Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
Support CPU TDP 70-205W*

Cores Up to 28 Cores

Note * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity 6 DIMM slots
Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset Intel® C622 chipset

SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Controllers Dual 10GBase-T LAN with Intel® X722 + X557

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video ASPEED AST2500 BMC



Input / Output

SATA 10 SATA3 (6Gbps) ports

LAN 2 RJ45 10GBase-T LAN ports
1 RJ45 dedicated IPMI LAN port

USB 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
7 USB 2.0 ports (2 rear + 5 headers)

Video 1 VGA port

Serial Port / Header 2 COM ports (1 rear, 1 header)

SuperDOM 2 SuperDOM (Disk on Module) ports with built-in power



System BIOS

BIOS Type AMI 32Mb SPI Flash ROM



Management

Software Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SPM, SUM
SuperDoctor® 5
Watch Dog

Power Configurations ACPI / APM Power Management



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 1U Rackmount

Model CSE-815TQC-605WB



Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 25.6" (650mm)

Package 23.5" (W) x 8.5" (H) x 33.7" (L)

Weight Gross Weight: 46 lbs (20.87 kg)
Net Weight: 22 lbs (9.98 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status)



Expansion Slots

PCI-Express 2 PCI-E 3.0 x16 (FHFL) slots
1 PCI-E 3.0 x8 (LP) slot

M.2 1x M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector



Drive Bays

Hot-swap 4 Hot-swap 3.5" SATA3 drive bays



Peripheral Drives

DVD-ROM 1 Slim DVD-ROM drive bay



System Cooling

Fans 5 Counter-rotation 40x56mm PWM fans
1 fan for AOC cooling (option)



Power Supply
600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching
AC Input 100-240V, 50-60Hz

DC Output +3.3V: 15A
+5V: 18A
+5V standby: 3A
+12V: 49A
-12V: 0.5A

Certification Platinum Level Certified
Platinum Certified
[ Test Report ]


Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
