SUPERMICRO 1U server 1xXeon D-2123IT 4x DDR4 ECC RDIMM, SSD M.2 NVMe PCIe4 SPI Capable Vertical

Product SKUs





SYS-E300-9D-4CN8TP

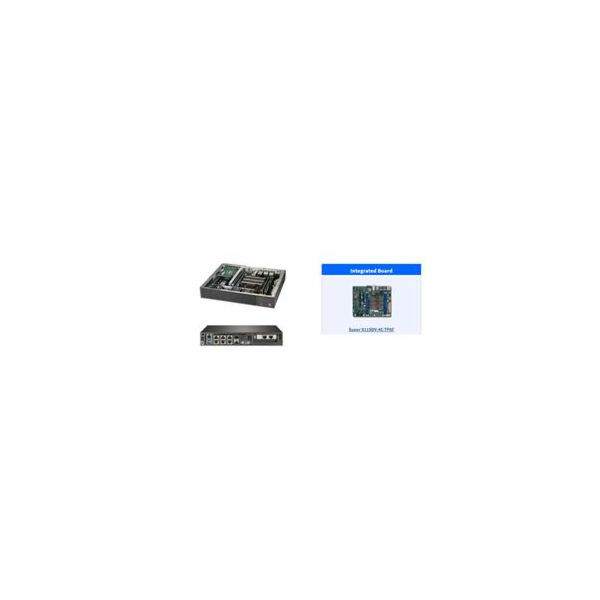

SuperServer E300-9D-4CN8TP ( Black )











Motherboard






Super X11SDV-4C-TP8F









Processor/Cache





CPU


Intel® Xeon® processor D-2123IT ,
CPU TDP support 60W




Cores / Cache


4 Cores, 8 Threads











System Memory





Memory Capacity


Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC DIMM
4 DIMM slots




Memory Type


2666/2400/2133MHz ECC LRDIMM and ECC DIMM
Operating speed up to 2400MHz




DIMM Sizes


RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 16GB, 32GB, 64GB, 128GB




Memory Voltage


1.2 V




Error Detection


Corrects single-bit errors
Detects double-bit errors
  (using ECC memory)











On-Board Devices





Chipset


System on Chip




SATA


SATA3 (6Gbps) ports via SoC controller




Network Controllers


Quad 1GbE with Intel I350-AM4
Dual 10GBase-T with Intel X557
Dual 10G SFP+ via SoC




IPMI


Support for Intelligent Platform
Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support




Graphics


Aspeed AST2500 BMC











Input / Output





SATA


SoC controller for 4 SATA3 (6Gbps) ports




LAN


2x 10G SFP+ ports
2x 10GBase-T LAN ports
4x 1GbE LAN ports
1 Dedicated IPMI LAN port




USB


2 USB 3.0 ports (rear)




Display


1 VGA port




TPM


1 TPM 2.0 header
























Chassis





Form Factor


Compact




Model


CSE-E300











Dimensions





Width


10.43" (264.8mm) / 15" (381mm) - pkg.




Height


1.7" (43mm) / 10.87" (276mm) - pkg.




Depth


8.9" (226mm) / 5.59" (142mm) - pkg.




Weight


Gross Weight: 7.5 lbs (3.4 kg)
Net Weight: 3.45 lbs (1.56 kg)




Available Colors


Black











Front Panel





Buttons


Power On/Off button




LEDs


Power LED (Hard drive activity LED)











Expansion Slots





PCI-Express


1 PCI-E 3.0 x8 slot











Drive Bays





Internal


1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied)











System Cooling





Fans


3x 40x28mm 4-PIN PWM Fan











Power Supply





DC Power Adapter with PFC









System BIOS





BIOS Type


128Mb SPI Flash with AMI BIOS




BIOS Features


PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup











Management





Software


Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SUM
SuperDoctor® 5
Watch Dog




Power Configurations


ACPI Power Management
+12V DC Power Input
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL




Fan


Fans with tachometer status monitoring
Status monitor for speed control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors











Operating Environment / Compliance





RoHS


RoHS Compliant




Environmental Spec.


Operating Temperature:
   0°C to 40°C (32°F to 104°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
