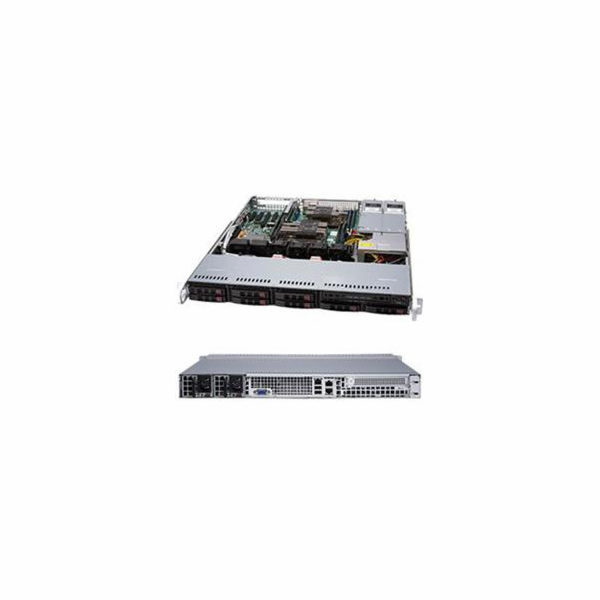

SUPERMICRO 1U server 2x LGA3647, iC621, 8x DDR4 ECC R, 8x SATA3 HS (2,5"), M.2, 2x 600W, 2x1GbE, IPMI

Product SKUs

SYS-1029P-MTR SuperServer 1029P-MTR (Black)



Motherboard


Super X11DPL-i


Processor/Cache

CPU Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-140W with IVR

Cores Up to 28 Cores

Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity 8 DIMM slots
Up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro



On-Board Devices

Chipset Intel® C621 chipset

SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Controllers Marvell 88E1512 PHY Gigabit Ethernet controller
Supports 1000BASE-T

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video ASPEED AST2500 BMC



Input / Output

SATA 8 SATA3 (6Gbps) ports

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 2.0 ports (rear)

Video 1 VGA port

Serial Port / Header 1 COM port (header)

DOM 2 SuperDOM (Disk on Module) ports



System BIOS

BIOS Type 256Mb SPI Flash EEPROM with AMI BIOS



Management

Software Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog

Power Configurations ACPI / APM Power Management



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 1U Rackmount

Model CSE-113MFTS-R804CB



Dimensions and Weight

Width 17.2" (437mm)

Height 1.7" (43mm)

Depth 19.98" (508mm)

Package 23.4" (W) x 8.5" (H) x 29.7" (L)

Weight Gross Weight: 31.1 lbs (14.1 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED



Expansion Slots

PCI-Express 1 PCI-E 3.0 x8 (FHHL) slot



Drive Bays

Hot-swap 8 Hot-swap 2.5" SATA3 drive bays



Peripheral Drives

Optional Slim DVD-ROM drive (optional)
PCIe/SATA M.2 drive (optional)



System Cooling

Fans 4x 4cm 22.5K RPM middle cooling fans



Power Supply

800W Redundant Power Supplies with PMBus
Total Output Power 800W

Dimension
(W x H x L) 54.5 x 40.25 x 220 mm

Input 750W: 100-127Vac / 10A
800W: 200-240Vac / 5.5A
800W: 230-240Vdc / 5.5A

+12V Max: 62.5A /Min: 0.5A (100-127Vac)
Max: 66.6A /Min: 0.5A (200-240Vac, 230-240Vdc)

+5Vsb Max: 4A /Min: 0A

Output Type Gold Finger

Certification Platinum Level Certified
Platinum Level

DC option for: (AC counter-part) PWS-601D-1R



Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
