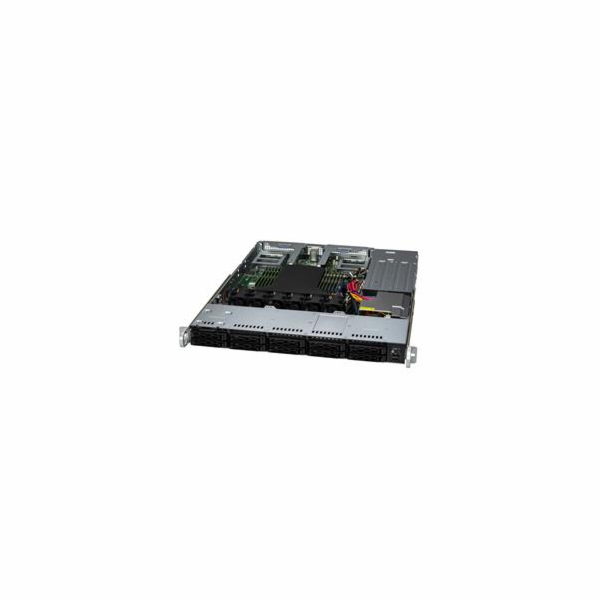

SUPERMICRO 1115CS-TNR 1U SP5(400W), noLAN, 10NVMe5(vč.CBL), 2M.2, 12DDR5, 2AIOM,2PCI-E16g5, IPMI, RoT, rPS 860W (80+TIT)

Product SKUs


A+ Server  AS -1115CS-TNR  Standard version with PWS-860P-1R2 (Platinum Level)


A+ Server  AS -1115CS-TNR-EU  European version with PWS-861A-1R (Titanium Level)







Motherboard


Super H13SSW







Processor


CPU


Single processor(s)
AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)




Core Count


Up to 160C/320T




Note


Supports up to 400W TDP CPUs *
*Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.









GPU


Max GPU Count


Up to 2 single-width GPUs




Supported GPU


NVIDIA PCIe: L4, A2
View GPU Options




CPU-GPU Interconnect


PCIe 5.0 x16 CPU-to-GPU Interconnect




GPU-GPU Interconnect


PCIe









System Memory


Memory


Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
View Memory Options




Memory Voltage


1.1V









On-Board Devices


Chipset


System on Chip




Network Connectivity


Via AIOM
View AIOM Options
View AOC Options









Input / Output


LAN


1 RJ45 1 GbE Dedicated BMC LAN port




USB


2 USB 3.0 ports(rear)
2 USB 2.0 ports(front)




Video


1 VGA port




Serial


1 COM port(rear)




TPM


1 TPM header









System BIOS


BIOS Type


AMI 32MB SPI Flash ROM




BIOS Features


ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support









Management


Software


SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!




Power configurations


ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,









Security


Hardware


Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant




Features


Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown









PC Health Monitoring


FAN


Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors




Temperature


Monitoring for CPU and chassis environment
Thermal Control for fan connectors




Voltage


System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
