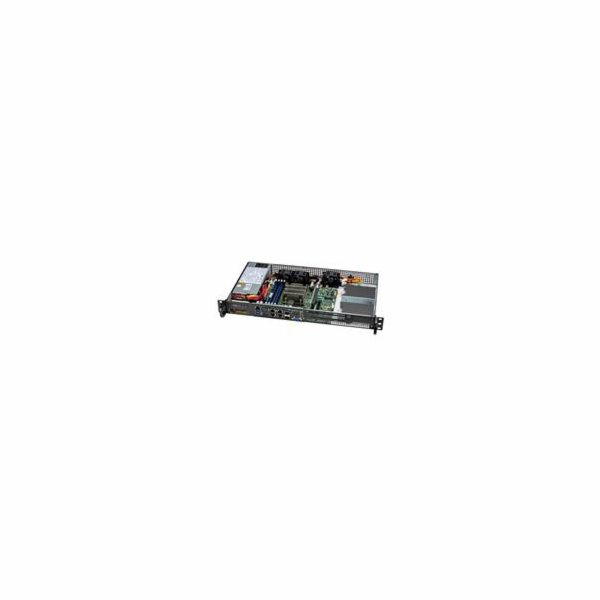

SUPERMICRO 1U server D-1718T , 4x RDIMM, 2x3.5 /4x2.5(opt) SATA3, 4x1GbT,2x25GbSFP28, 200W, IPMI

Key Applications Retail Application, Firewall, Gateway, uCPE Key Features Intel® Xeon® Processor D-1718T, CPU TDP 46W Up to 256GB Registered ECC RDIMM, DDR4-2933MT/s, in 4 DIMM slots 4 GbE and Dual 25G SFP28 1 Internal 3.5" or 4 Internal 2.5" drive bays 3x 40x28mm 4-PIN PWM fans 200W Low-noise AC-DC power supply 1x VGA, 2 USB 3.0

M.2 List | Supermicro











Product SKUs


SuperServer  SYS-510D-4C-FN6P







Motherboard


Super X12SDV-4C-SP6F







Processor


CPU


Single FCBGA-2227
Intel® Xeon® Processor D-1700 Series




Note


Supports up to 46W TDP CPUs (Air Cooled)









System Memory


Memory


Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
View Memory Options




Memory Voltage


1.2V









On-Board Devices


Chipset


Intel® SoC




Network Connectivity


2 RJ45 1GBASE-T with Intel® I210
2 SFP28 25GbE with Intel® SoC
2 RJ45 1GBASE-T with Intel® I350-AM2
View AOC Options









Input / Output


LAN


1 RJ45 1 GbE Dedicated BMC LAN port
2 SFP28 25 GbE LAN ports (Intel® SOC)
2 RJ45 1 GbE LAN ports (Intel® I350-AM2)
2 RJ45 1 GbE LAN ports (Intel® I210-IT)




USB


2 ports




Video


1 VGA port









Management


Software


SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!




Power configurations


Power-on mode for AC power recovery
ACPI Power Management









Security


Hardware


Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant




Features


Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown









PC Health Monitoring


CPU


Monitors for CPU Cores, Chipset Voltages, Memory




FAN


Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control




Temperature


CPU thermal trip support, PEPI Monitoring for CPU and chassis environment























Chassis


Form Factor


Mini-1U




Model


CSE-505-203B









Dimensions and Weight


Height


1.7" (43 mm)




Width


17.2" (437 mm)




Depth


9.8" (249 mm)




Package


6.1" (H) x 25.8" (W) x 18.3" (D)




Weight


Gross Weight: 10 lbs (4.54 kg)




Available Color


Black









Front Panel


LED


Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED




Buttons


Power On/Off button
System Reset button









Expansion Slots


PCI-Express (PCIe) Configuration


Default

1 PCIe 4.0 x16 FHHL slot


View AOC Options









Drive Bays / Storage


Drive Bays Configuration


Default: Total 4 bays

4 internal fixed 2.5" SATA drive bays






M.2


1 M.2 PCIe 3.0 x1 SATA slot (E-key 2230; USB 2.0)
1 M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0)
1 M.2 PCIe 3.0 x4 SATA slot (M-key 2280)
View M.2 Options









System Cooling


Fans


4x 4-PIN PWM 40x28mm Fan(s) (optional)









Power Supply










1x 200W Gold Level (91%) power supply




Dimension (WxHxL)
76 x 40.3 x 192 mm


Input
200W: 100-240Vac
200W: 100-240Vac / 50-60Hz


+12V
Max: 16A / Min: 0.1A (100Vac-240Vac)
Max: 16A / Min: 0A (100Vac-240Vac)


5V SB
Max: 2A / Min: 0A


Output Type
20pin ATX


Certification
   Gold Level

[ Test Report ]




















Operating Environment


Environmental Spec.


Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
