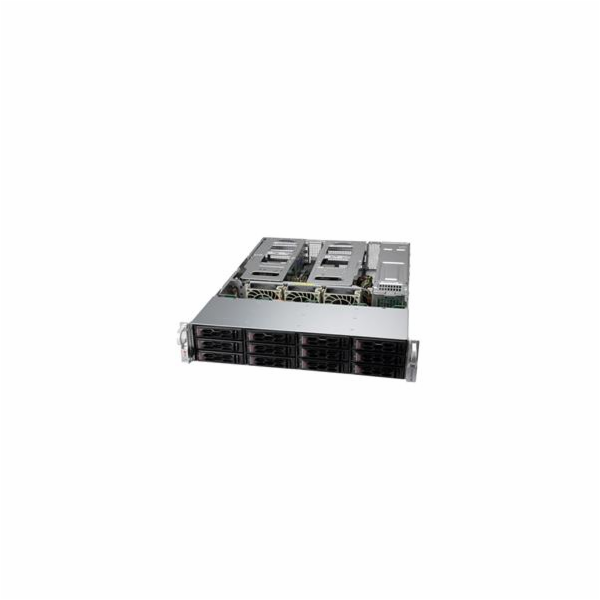

SUPERMICRO 2U chassis 12x 3,5" HS SAS3/SATA/NVMe, 2x1200W (80PLUS Platinum)

Product SKUs


SuperChassis  LA26AC12-R1K23AW







Form Factor




2U chassis support Proprietary motherboard - X12DDW









Processor Support




Dual and Single Intel® and AMD processors









Dimensions


Height


3.5" (89 mm)




Width


17.2" (437 mm)




Depth


25.5" (647 mm)




Gross Weight


69 lbs (31.3 kg)




Net Weight


35.3 lbs (16 kg)




Packaging (W x H x L)


26.4" (671 mm) x 11.4" (290 mm) x 34.3" (871 mm)




Available Color


Black









Expansion Slots




6x Full-height expansion slot(s)
2x SIOM expansion slot(s)









Drive Bays




Optional 2x 2.5" hot-swap drive bay
12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3









Backplane




12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS









Front Panel


Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
2 Network Activity LEDs
Unit Identification (UID) LED
Fan Fail/System Over Heat LED























Systems Cooling


Fans


3x 8cm high-performance PWM fan(s)









System Monitoring




Optional Chassis intrusion switch









Operating Environment (System)


Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)









Power Supply


1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm


Power Efficiency


96%




Total Output Power and Input


1200W with Input 200 - 240Vac
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vdc




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


336 x 76 x 40 mm




Output Type


Backplanes (gold finger)




+12V


Max: 100A / Min: 0A (200Vdc - 240Vdc)
Max: 100A / Min: 0A (200Vac - 240Vac)
Max: 83A / Min: 0A (100Vac - 127Vac)




+5Vsb


Max: 4A / Min: 0A




Power Distributor


PDB-PT826-S4824
O/P: 12V/168
+5V Max: 40A
+3.3V Max: 24A
-12V Max: 0.6A




Certification


   Titanium Certified









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
