Key Features
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed
12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
12x SAS3/SATA3/NVMe4 storage devices
2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
7 low-profile expansion slot(s)
3 x 8cm high-performance PWM fan(s)
Specifications
Product SKUs

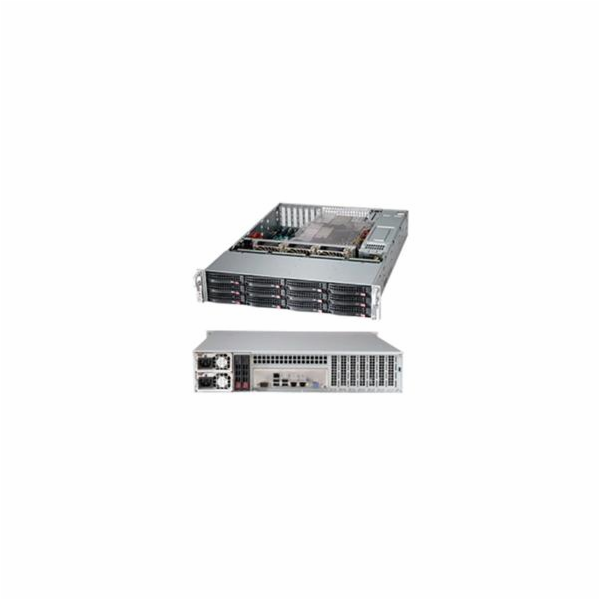

CSE-826BAC12-R1K23LPB
SuperChassis 826BAC12-R1K23LPB
Form Factor
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
3.5" (89 mm)
Width
17.2" (437 mm)
Depth
25.5" (647 mm)
Net Weight
40 lbs (18.14 kg)
Gross Weight
55 lbs (24.95 kg)
Packaging (W x H x L)
26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color
Black
Expansion Slots
7 low-profile expansion slot(s)
Drive Bays
12 x 3.5" hot-swap drive bay
Optional 2 x 2.5" hot-swap drive bay
12x SAS3/SATA3/NVMe4 storage devices
Backplane
2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Systems Cooling
Fans
3 x 8cm high-performance PWM fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
96%
Total Output Power and Input
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
Max: 100A (200 - 240)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT826-8824
O/P: 12V/135
+5V Max: 40
+3.3V Max: 24
-12V Max: 0.6
Certification
Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Components
Standard Parts List
Part Number
Qty
Description
Air Shroud
MCP-310-29001-0N
1
SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane
BPN-SAS3-LA26A-N12
1
2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable(s)
CBL-CDAT-0607
1
[NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD
Cable(s)
CBL-PWCD-0160-IS
2
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Cable(s)
CBL-PWEX-1078
3
PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Part(s)
MCP-120-00115-0N
7
Blank LP L-bracket with 4x4 vent holes
Part(s)
MCP-230-82602-0N
1
Top cover for SC826B/216B/825B
Part(s)
MCP-290-82604-0V
1
Silver right chassis handle for SC826,HF,RoHS/REACH,PBF
Part(s)
MCP-290-82617-0V
1
Silver left c
