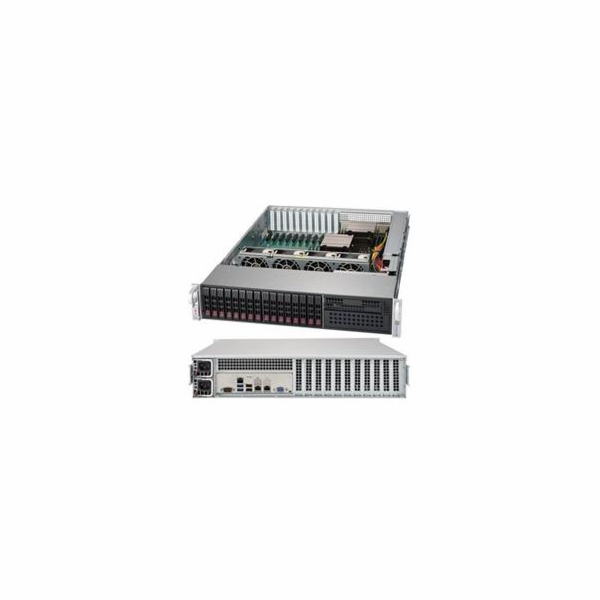

SUPERMICRO 2U chassis 16x 2,5" HS SAS/SATA (4x 8643), 1x 5,25", 2x1000W (80+Titanium)

Product SKUs

CSE-213XAC-R1K05LP SuperChassis 213XAC-R1K05LP



Form Factor

2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"



Processor Support

Dual and Single Intel® and AMD processors



Dimensions

Height 3.5" (89 mm)

Width 17.2" (437 mm)

Depth 25.6" (650 mm)

Gross Weight 58 lbs (26.31 kg)

Packaging (W x H x L) 26.4" (671 mm) x 11.3" (287 mm) x 39.8" (1011 mm)

Available Color Black



Expansion Slots

11 low-profile expansion slot(s)



Drive Bays

16 x 2.5" hot-swap SAS3/SATA drive bay



Backplane

16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD



Peripheral Drives

Optional 1 x slim DVD-ROM drive bay
Optional 2 x USB 2.0 ports
Optional 1 x COM port tray
1 x standard 5.25" drive bay



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED







Systems Cooling

Fans 4 x 8cm high-performance PWM fan(s)



System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 800/1000W Redundant Power Supply 38mm Width
Power Efficiency 96%

Total Output Power and Input 800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 360 x 38 x 40 mm

Output Type Backplanes (gold finger)

+12V Max: 66.7A (100Vac - 127Vac)
Max: 83A (200Vac - 240Vac)

+5Vsb Max: 4A / Min: 0A

Power Distributor PDB-PT213X-3824
O/P: 12V/100A
+5V Max: 45A
+3.3V Max: 24A
-12V Max: 0.6A

Certification Titanium Certified Titanium Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
