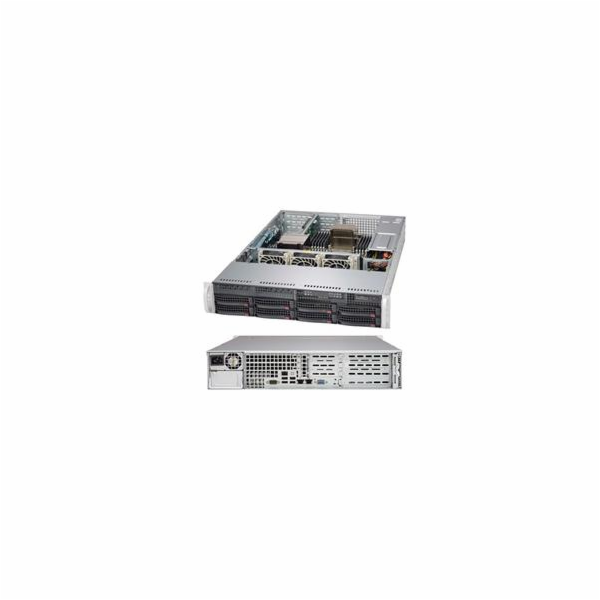

Supermicro CSE-825TQC-600WB SUPERMICRO 2U chassis 8x 3,5" HS SAS/SATA, 600W (80PLUS Platinum), WIO

Product SKUs

CSE-825TQC-600WB SuperChassis 825TQC-600WB



Form Factor

2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards



Processor Support

Dual and Single Intel® and AMD processors



Dimensions

Height 3.5" (89 mm)

Width 17.2" (437 mm)

Depth 25.5" (647 mm)

Gross Weight 52 lbs (23.59 kg)

Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)

Available Color Black



Expansion Slots

4 full-height & full-length expansion slot(s)
3 low-profile expansion slot(s)



Drive Bays

8 x 3.5" hot-swap SAS3/SATA drive bay
2 x 3.5" fixed drive bay



Backplane

8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD



Peripheral Drives

Optional 1 x slim DVD-ROM drive bay
Optional 2 x USB 2.0 ports
Optional 1 x COM port tray
Optional 2 x USB 3.0 ports



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED







Systems Cooling

Fans 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 600W platinum efficiency multiple output power supply w/PMBus
Power Efficiency 92%

Total Output Power and Input 600W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 279.4 x 76 x 40.4 mm

Output Type 24pin ATX

-12V Max: 0.5A / Min: 0A

+12V Max: 49A / Min: 0.5A (100Vac - 240Vac)

+5V Max: 18A / Min: 0.5A

+3.3V Max: 15A / Min: 0.5A

+5Vsb Max: 3A / Min: 0A

+12Vsb Max: NAA

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
