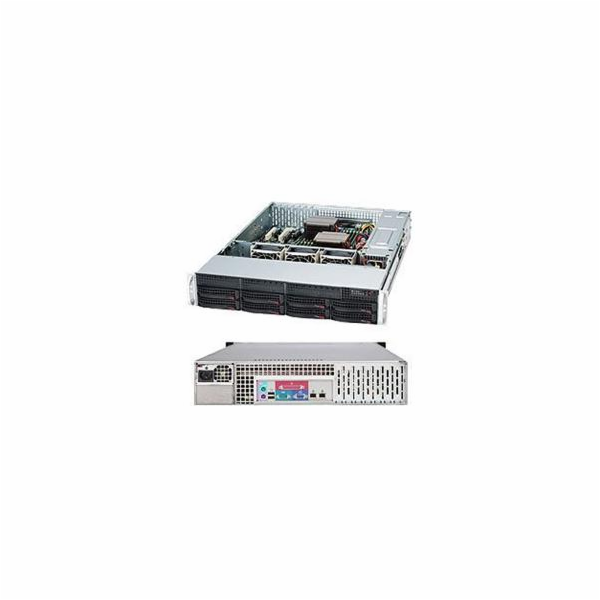

CSE-825TQC-600LPB SuperChassis 825TQC-600LPB



Form Factor

2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards



Processor Support

Dual and Single Intel® and AMD processors



Dimensions

Height 3.5" (89 mm)

Width 17.2" (437 mm)

Depth 25.5" (647 mm)

Gross Weight 52 lbs (23.59 kg)

Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)

Available Color Black



Expansion Slots

7 low-profile expansion slot(s)



Drive Bays

8 x 3.5" hot-swap SAS3/SATA drive bay
2 x 3.5" fixed drive bay



Backplane

8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD



Peripheral Drives

Optional 1 x slim DVD-ROM drive bay
Optional 2 x USB 2.0 ports
Optional 1 x COM port tray
Optional 2 x USB 3.0 ports



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED







Systems Cooling

Fans 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)



System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 600W platinum efficiency multiple output power supply w/PMBus
Power Efficiency 92%

Total Output Power and Input 600W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 279.4 x 76 x 40.4 mm

Output Type 24pin ATX

-12V Max: 0.5A / Min: 0A

+12V Max: 49A / Min: 0.5A (100Vac - 240Vac)

+5V Max: 18A / Min: 0.5A

+3.3V Max: 15A / Min: 0.5A

+5Vsb Max: 3A / Min: 0A

+12Vsb Max: NAA

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-0160L 1 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0263L 1 77CM 9PIN TO 9PIN INTERNAL USB CABLE
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
Drive Tray(s) MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5" HDD tray
Drive Tray(s) MCP-220-82502-0B 2 Black fixed 3.5" HDD tray or FDD dummy tray
Part(s) MCP-310-28005-1N 1 X8 air shroud universal component (part C)
Part(s) MCP-310-29003-1N 1 X9 SC825/826/216/213 universal air shroud component,(part A)
Part(s) MCP-310-29004-1N 1 X9 SC825/826/216/213 universal air shroud component, (B)
Part(s) MCP-310-29005-1N 1 X9 SC825/826/216/213 universal air shroud component, (D,X9)
Part(s) MCP-310-29006-1N 1 X9 SC825/826/216/213 universal air shroud component, (E)
Power Supply & Accessory PWS-605P-1H 1 1U 600W Multi Output Power Supply PMbus
Power Supply & Accessory CSE-PT0130L 1 SC745 Power Supply Dummy Cover (76mm wide, 700W/800W/900W)
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-82506-0N 1 LP Rear Window for SC825,825M,826,213,216




Optional Parts List

Part Number Qty Description
Adaptor Bracket MCP-120-82503-0N - Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
Front USB MCP-220-00114-0N - Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH
Tray(s) MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Tray(s) MCP-220-00023-01 - Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
Tray(s) MCP-220-82503-0B - Black slim FDD kit for SC825/829,828,835
Cable CBL-0157L - 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Cable CBL-SAST-0699 - internal mini SAS HD to 4 SATA 12G, 75/75/90/90cm w/75cm SB, S. 30AWG,RoHS/REACH
Cable CBL-0082L - Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable CBL-0296L - 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable CBL-0180L-01 - SET OF 4 SATA 70/59/48/38CM ROUND S-RA, 26AWG
LCD/OLED Solutions MCP-220-00119-0B - 2nd Gen Black 3.5" OLED tray, support 1x internal 2.5" HDD
SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
HDD Tray Converter MCP-220-00043-0N - Black hot-swap gen 4 3.5 to 2.5 HDD tray
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5 - BLACK TEAC SLIM DVD SATA DRIVE,HF,RoHS
SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
Peripheral Drive(s) FPD-TEAC-SB - BLACK SLIM TEAC FLOPPY DRIVE FOR SC813
Front Bezel MCP-210-82503-0B - Black SC825 front bezel





Motherboard (for CSE- 825TQC-600LPB)


X11SRL-F

---
