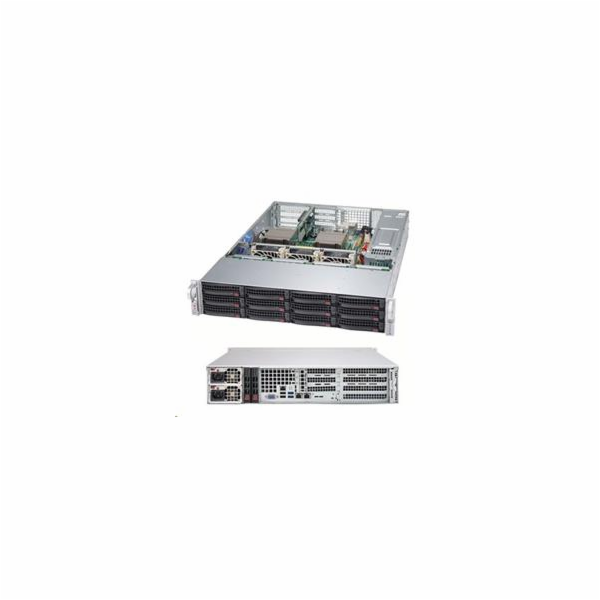

SUPERMICRO 2U chassis 8xSAS3 12Gbps+4x(NVMe nebo SAS3), 2x1200W(tit.)



Key Features





2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
7 low-profile expansion slot(s)
3 x 8cm high-performance PWM fan(s)
Optional 5 x 6cm 4pin high performance fan(s)






Specifications













Product SKUs





CSE-826BAC4-R1K23LPB


SuperChassis 826BAC4-R1K23LPB













Form Factor







2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed













Processor Support







Dual and Single Intel® and AMD processors













Dimensions





Height


3.5" (89 mm)




Width


17.2" (437 mm)




Depth


25.5" (647 mm)




Net Weight


40 lbs (18.14 kg)




Gross Weight


55 lbs (24.95 kg)




Packaging (W x H x L)


26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)




Available Color


Black













Expansion Slots







7 low-profile expansion slot(s)













Drive Bays







12 x 3.5" hot-swap drive bay
Optional 2 x 2.5" hot-swap drive bay
8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD













Backplane







12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices













Front Panel





Buttons


Power On/Off button
System Reset Button




LEDs


2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED





















Systems Cooling





Fans


3 x 8cm high-performance PWM fan(s)
Optional 5 x 6cm 4pin high performance fan(s)












System Monitoring







Chassis intrusion switch












Operating Environment (System)





Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non-Operating Relative Humidity Range


5% - 95% (non-condensing)












Power Supply


1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm


Power Efficiency


96%




Total Output Power and Input


1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


336 x 76 x 40 mm




Output Type


Backplanes (gold finger)




+12V


Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
Max: 100A (200 - 240)




+5Vsb


Max: 4A / Min: 0A




Power Distributor


PDB-PT826-8824
O/P: 12V/135
+5V Max: 40
+3.3V Max: 24
-12V Max: 0.6




Certification


  Titanium Certified












Regulatory (Power Supply)





Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL














Components









Standard Parts List






Part Number
Qty
Description


Air Shroud
MCP-310-29001-0N
1
SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13


HD Backplane
BPN-SAS3-826A-N4
1
12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices


Cable(S)
CBL-0160L
2
US POWER CORD 16AWG, PB FREE


Fan(s)
FAN-0158L4
3
80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH


Drive Tray(s)
MCP-220-00075-0B
12
Black gen 5.5 hot-swap 3.5"; HDD tray


Power Distributor
PDB-PT826-8824
1
PDB with longer 24pin for SC826B


Power Supply & Accessory
PWS-1K23A-1R
2
AC-DC 1200W, Titanium Level, Redundancy, 1U,
