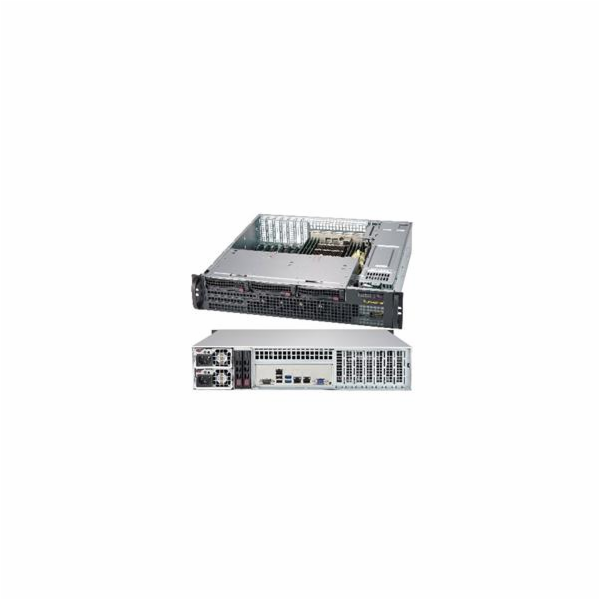

SUPERMICRO 2U short depth chassis 3x 3,5" HS SAS/SATA, DVD, 2x800W (titanium), WIO

2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8" x 13.4" motherboards
3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
4 full height expansion slot(s) (Riser Card Required), 3 low-profile expansion slot(s) (Riser Card Required)
4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control




Resources



Chassis Manual   Optimization



Specifications















Product SKUs





CSE-825MBTQC-R802WB


SuperChassis 825MBTQC-R802WB















Form Factor







2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8" x 13.4" motherboards















Processor Support







Dual and Single Intel® and AMD processors















Dimensions





Height


3.5" (89 mm)




Width


17.2" (437 mm)




Depth


17.7" (450 mm)




Gross Weight


42 lbs (19.05 kg)




Packaging (W x H x L)


23.4" (594 mm) x 9.9" (251 mm) x 32.5" (826 mm)




Available Color


Black















Expansion Slots







4x Full-height expansion slot(s) (Riser Card Required)
3x Low-profile expansion slot(s) (Riser Card Required)















Drive Bays







3x 3.5" hot-swap SAS/SATA drive bay with SGPIO
Optional 2x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards















Backplane







3-Port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD















Peripheral Drives







Optional 1x slim DVD-ROM drive bay
Optional 1x COM port tray
Optional 2x USB 2.0 ports















Front Panel





Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
System Information LED
Power Fail LED
2 Network Activity LEDs


























Systems Cooling





Fans


Optional 1x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
4x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control















Operating Environment (System)





Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)















Power Supply





1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium


Power Efficiency


96%




Total Output Power and Input


800W with Input 200 - 240Vdc
800W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


336 x 76 x 40 mm




Output Type


Backplanes (gold finger)




+12V


Max: 66A / Min: 0A (100Vac - 240Vac)
Max: 66A / Min: 0A (200Vdc - 240Vdc)




+5Vsb


Max: 4A / Min: 0A




Power Distributor


PDB-PT825-S8824
O/P: 12V/75A
+5V Max: 30A
+3.3V Max: 24A
-12V Max: 0.6A




Certification


   Titanium Certified















Regulatory (Power Supply)





Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL










































Components











Standard Parts List



Part Number
Qty
Description


Air Shroud
MCP-310-29019-0N
1
SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB


HD Backplane
BPN-SAS3-825MTQ-P
1
3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD


Cable(s)
CBL-0071L
1
ROUND 16 T
