Product SKUs

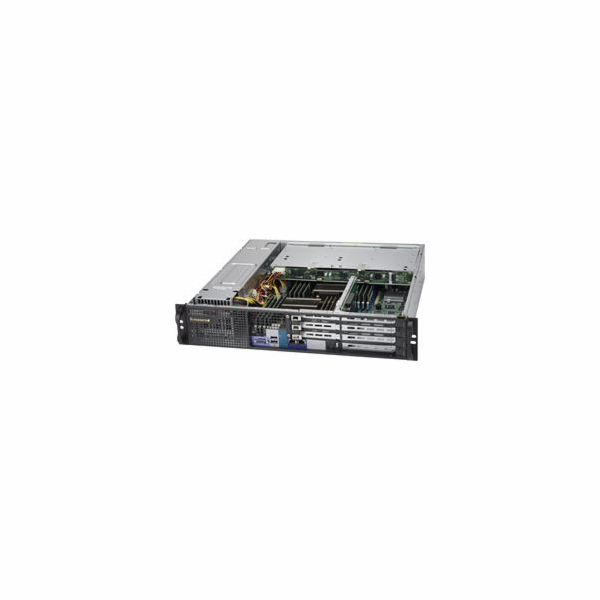

CSE-823MTQC-R802WB SuperChassis 823MTQC-R802WB
Form Factor
2U chassis - supports for maximum motherboard sizes: SMC Proprietary WIO, 12.8" x 13.4" motherboards
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height 3.5" (89 mm)
Width 17.2" (437 mm)
Depth 17.7" (450 mm)
Gross Weight 42 lbs (19.05 kg)
Packaging (W x H x L) 23.4" (594 mm) x 9.9" (251 mm) x 32.5" (826 mm)
Available Color Black
Expansion Slots
4 full height expansion slot(s) (Riser Card Required)
3 low-profile expansion slot(s) (Riser Card Required)
Drive Bays
3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
Backplane
3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED
Systems Cooling
Fans 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency 96%
Total Output Power and Input 800W with Input 100 - 240Vac
800W with Input 200 - 240Vdc
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 336 x 76 x 40 mm
Output Type Backplanes (gold finger)
+12V Max: 66A (100Vac - 240Vac)
Max: 66A (200 - 240)
+5Vsb Max: 4A / Min: 0A
Power Distributor PDB-PT823M-8824
O/P: 12V/75A
+5V Max: 30A
+3.3V Max: 24A
-12V Max: 0.6A
Certification Titanium Certified Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
Air Shroud MCP-310-29019-0N 1 SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
HD Backplane BPN-SAS3-825MTQ-P 1 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Fan(s) FAN-0157L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Cooling Fan & Accessory MCP-320-82301-0B 1 Fan Tray for Six 4056 Fans
Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00075-0B 3 Black gen 5.5 hot-swap 3.5" HDD tray
Drive Tray(s) MCP-220-82301-0N 1 HDD cage housing 3 trays for SC823M
Power Distributor PDB-PT823M-8824 1 SC823M 24PIN REDUNDANT POWER DISTRIBUTOR
Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-82304-0N 1 SC823M rear window
Optional Parts List
Part Number Qty Description
Rail MCP-290-00058-0N 1 Ball bearing quick release rail for shor-depth rack (19"~26.6")
Cable CBL-0044L 3 SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat
Cable CBL-0157L 1 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Cable CBL-SAST-0948 1 MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG
Chassis parts MCP-290-82302-0N 1 Dummy HDD cover for SC823M
Drive Trays MCP-220-82302-0N 1 2.5" or 3.5" fixed HDD tray for SC823M
Motherboard (for CSE- 823MTQC-R802WB)
X11DDW-L X11DDW-NT
