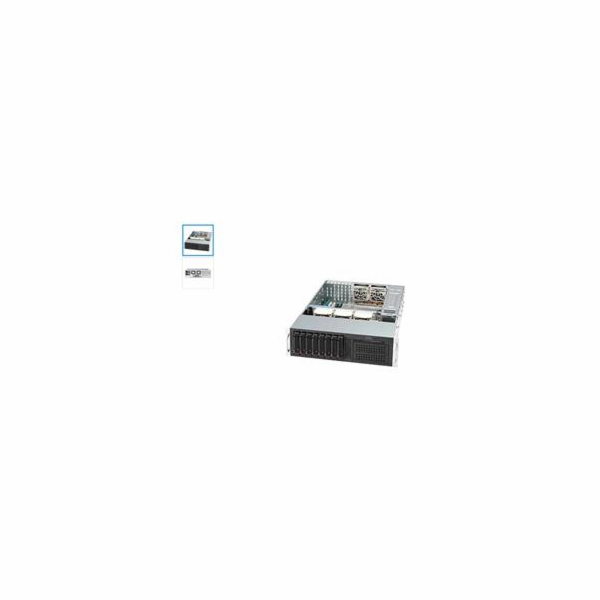

SUPERMICRO 3U chassis 8x 3,5" HS SAS/SATA, 2x 5,25", slimDVD, 2x920W (80+titanium)

Product SKUs


SuperChassis  835TQ-R921B







Form Factor




3U chassis support for motherboard size - E-ATX and ATX.









Processor Support




Dual and Single Intel® and AMD processors









Dimensions


Height


5.2" (132 mm)




Width


17.2" (437 mm)




Depth


25.5" (647 mm)




Gross Weight


75 lbs (34.02 kg)




Net Weight


36 lbs (16.33 kg)




Packaging (W x H x L)


26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm)




Available Color


Black









Expansion Slots




7x Full-height, Full-length expansion slot(s)









Drive Bays




8x 3.5" hot-swap SAS/SATA drive bay
2x 5.25" drive bay









Backplane




SAS833/835 BACK PANEL WITH AMI MG9072









Peripheral Drives




1x slim DVD-ROM drive bay









Front Panel


Button


Power On/Off button
System Reset button




LED


HDD activity LED
Power Fail LED
2 Network Activity LEDs
Power LED
System Overheat LED























Systems Cooling


Fans


2x 80mm rear hot-swap exhaust PWM fan(s)
3x 80mm Hot-swap PWM Fans









System Monitoring




Chassis intrusion switch









Operating Environment (System)


Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)









Power Supply


1U 920W Redundant Platinum Super Quiet power supply W/PMbus


Power Efficiency


94%




Total Output Power and Input


920W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


336 x 76 x 40 mm




Output Type


Backplanes (gold finger)




+12V


Max: 75A / Min: 1A (100Vac - 240Vac)




+5Vsb


Max: 4A / Min: 0A




Power Distributor


PDB-PT825-8824
O/P: 12V/75
+5V Max: 30A
+3.3V Max: 24A
-12V Max: 0.6A




Certification


   Platinum Certified









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
































Motherboard (for CSE-835TQ-R921B)


Motherboard Name



X10DRH-iT X10DRH-iLN X10DRH-i X10DRH-CT X10DRH-CLN4 X10DRH-C
