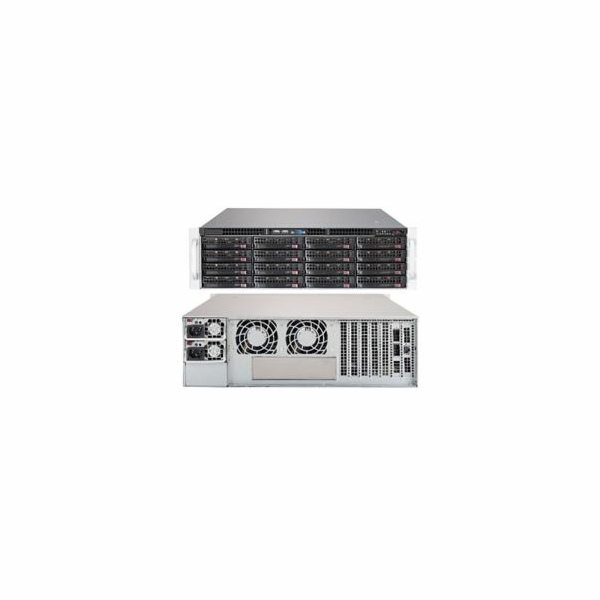

SUPERMICRO 3U JBOD chassis 16x 3,5" HS SAS/SATA (dual expander + 4xSFF 8644 + IPMI), 2x1000W (80PLUS Platinum)

Product SKUs

CSE-836BE2C-R1K03JBOD SuperChassis 836BE2C-R1K03JBOD



Form Factor

3U JBOD storage chassis



Dimensions

Height 5.2" (132 mm)

Width 17.2" (437 mm)

Depth 25.5" (647 mm)

Net Weight 36 lbs (16.33 kg)

Gross Weight 75 lbs (34.02 kg)

Packaging (W x H x L) 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)

Available Color Black



Drive Bays

16 x 3.5" hot-swap HDD bays for JBOD solution



Qualified SAS Controllers

AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller



Backplane

16-port 3U SAS3 12Gbps dual-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)



Front Panel

Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button

LEDs 1 Network Activity LEDs







Systems Cooling

Fans 3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) & air shroud



System Monitoring

IPMI



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency 96%

Total Output Power and Input 800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
1000W with Input 200 - 240Vdc

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 336 x 76 x 40 mm

Output Type Backplanes (gold finger)

+12V Max: 66.7A (100Vac - 127Vac)
Max: 83A (200Vac - 240Vac)
Max: 83A (200 - 240)

+5Vsb Max: 4A / Min: 0A

Power Distributor PDB-PT826-8824
O/P: 12V/135
+5V Max: 40
+3.3V Max: 24
-12V Max: 0.6

Certification Titanium Certified Titanium Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
