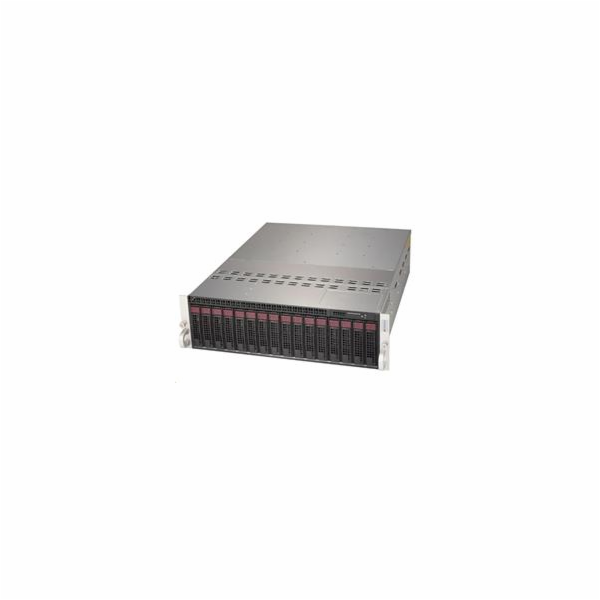

SUPERMICRO 3U MicroCloud server AS-3015MR-H8TNR, 8x PSE AM5 LGA1718 8x DDR5- 2RX8, 8x M,2 NVMe PCIe4 9

Product SKUs





  Chassis





A+ Server  AS -3015MR-H8TNR

Form Factor
3U Rackmount


Motherboard


Model
CSE-938NH-R2K20BP2



Super H13SRD-F

Dimensions and Weight



Processor (per Node)


Height
5.21" (132 mm)


CPU
Single Socket AM5 (LGA-1718)


Width

Depth


17.26" (438 mm)

23.2" (589 mm)




AMD EPYC™ 4005/4004 Series Processor




Core Count
Up to 16C/32T; Up to 128MB Cache

Package
11.65" (H) x 26.26" (W) x 34" (D)



Supports 65W - 170W TDP CPUs (Air Cooled)*


Gross Weight: 88 lbs (39.92 kg)


Note
*Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.

Weight
Net Weight: 62.2 lbs (28.21 kg)


GPU (per Node)


Available Color
N/A


Max GPU Count
Up to 1 single-width GPU

Front Panel



Supported GPU
NVIDIA PCIe: T4, L4, A2

LED
8 Individual Node Status Indicators



View GPU Options


Power Failure


System Memory (per Node)


Buttons
Power On/Off



Slot Count: 4 DIMM slots

Expansion Slots (per Node)




Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM


Default


Memory
Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM

PCI-Express (PCIe) Configuration
1 PCIe 5.0 x8 (in x16) LP slot



View Memory Options


1 PCIe 5.0 x8 MicroLP slot


Memory Voltage
1.1V


View AOC Options


On-Board Devices (per Node)

Drive Bays / Storage (per Node)



NVMe
NVMe; (Native)


Default: Total 2 bays



View NVMe Options


2 front fixed 3.5"/2.5" NVMe/SAS*/SATA* drive bays


Chipset
AMD Knoll - Integrated I/O Controller Hub

Drive Bays Configuration
(*SAS/SATA support may require additional storage controller and/or cables)


Network Connectivity
No NIC option supported


View NVMe Options



View AOC Options


View Drive Options


Input / Output (per Node)


M.2
1 M.2 NVMe/SATA slot (M-key 2280/22110)


USB
2 USB 2.0 ports


View M.2 Options



1 Type-C port(front)

System Cooling



Video
1 port

Fans
4 Heavy Duty 8cm Fan(s)


TPM
1 TPM Onboard/port 80

Air Shroud
8 Air Shrouds


System BIOS






BIOS Type
AMI 32MB SPI Flash EEPROM

Power Supply



Management






2x 2200W Redundant (1 + 1)




Titanium Level (96%) power supplies



SuperCloud Composer®

Dimension (WxHxL)
76 x 40 x 336 mm



Supermicro Server Manager (SSM)

Total Output Power
(for CCC only)



Supermicro Update Manager (SUM)


(for UL/cUL use only)


Software
Supermicro SuperDoctor® 5 (SD5)

Input
1200W: 100-127Vac



Super Diagnostics Offline (SDO)


1200W: 100-127Vac / 50-60Hz



Supermicro Thin-Agent Service (TAS)


1800W: 200-220Vac / 50-60Hz



SuperServer Automation Assistant (SAA) New!


2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)


Power configurations
Power-on mode for AC power recovery


1980W: 220-230Vac / 50-60Hz



ACPI 6.0 Power Management


2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)


PC Health Monitoring



2200W: 230-240Vac


Temperature
Monitoring for CPU and chassis environment


2090W: 230-240Vac / 50-60Hz


CPU
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.


2090W: 230-240Vdc / 50-60Hz (for CCC only)



3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V

+12V
Max: 100A / Min: 0A (100Vdc-127Vdc)


FAN
Fan speed control, Dual Cooling Zone


Max: 100A / Min: 0A (100Vac-127Vac)






Max: 150A / Min: 0A (200Vac-220Vac)






Max: 165A / Min: 0A (220Vac-230Vac)






Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)






Max: 183.3A / Min: 0A (220Vac-240Vac)






Max: 174.17A / Min: 0A (230Vac-240Vac)






Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)






Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)






Max: 183.33A / Min: 0A (230Vdc-240Vdc)





5V SB
Max: 1A / Min: 0A





Output Type
Backplanes (gold finger)












&
