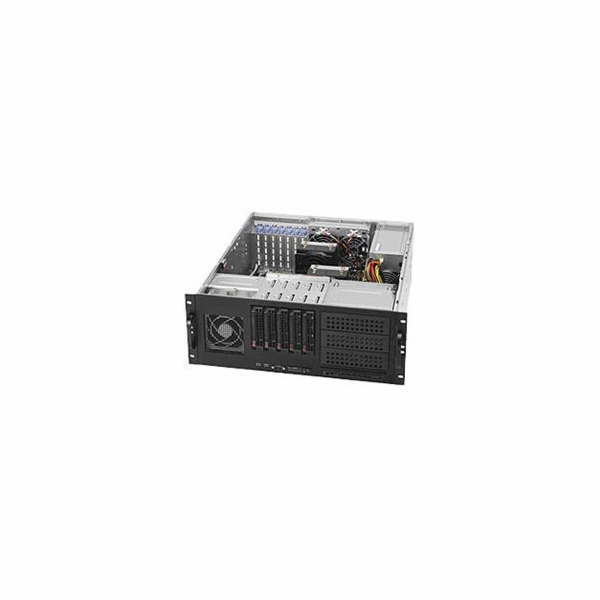

SUPERMICRO 4U 5x 3,5" HS SAS/SATA, 3x 5,25", 668W (80PLUS Platinum)

Key Features


668W Platinum Level High Efficiency Power Supply
5x SAS3 3.5" HDD Bays
3x 5.25" Peripheral Drive Bays
1x Slim DVD-ROM Drive Bay
5.7x Full-height, Full-length Tool-less Expansion SlotsDual channel Air Duct design
2x Front USB 3.0 Ports & 1x Com port
Optional Front Bezel with Removable Air Filter
Power Switch, Reset Switch & 6x LED Indicators




Specifications















Product SKUs





CSE-842TQC-668B


SuperChassis 842TQC-668B















Form Factor







4U rackmount chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX/ATX/MicroATX















Processor Support







Dual and Single Intel® and AMD processors















Dimensions





Height


7" (178 mm)




Width


17.2" (437 mm)




Depth


20.5" (521 mm)




Gross Weight


46 lbs (20.87 kg)




Net Weight


36 lbs (16.33 kg)




Packaging (W x H x L)


25.6" (650 mm) x 13.5" (343 mm) x 29" (737 mm)




Available Color


Black















Expansion Slots







7x Full-height, Full-length expansion slot(s)















Drive Bays







5x 3.5" hot-swap SAS/SATA drive bay















Backplane







5-Port 4U Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS















Peripheral Drives







Optional 1x slim DVD-ROM drive bay
3x standard 5.25" drive bay















Front Panel





Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
2 Network Activity LEDs
Fan Fail/System Over Heat LED




Port


2x USB 3.0 Port(s)


























Systems Cooling





Fans


1x 9cm hot-swap cooling fan(s) (Front, 5K RPM)
2x 8cm hot-swap redundant PWM cooling fan(s) (Rear, 9.4K RPM)















System Monitoring







Chassis intrusion switch















Operating Environment (System)





Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)















Power Supply





PS2 668W Multi-output power supply 80PLUS Platinum


Power Efficiency


92%




Total Output Power and Input


668W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


185 x 150 x 86 mm




Output Type


24pin ATX




-12V


Max: 0.1A / Min: 0A




+12V


Max: 54A / Min: 0.2A (100Vac - 240Vac)




+5V


Max: 20A / Min: 0.1A




+3.3V


Max: 15A / Min: 0.1A




+5Vsb


Max: 2A / Min: 0A




Certification


   Platinum Certified















Regulatory (Power Supply)





Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL










































Components











Standard Parts List



Part Number
Qty
Description


HD Backplane
BPN-SAS3-842TQ
1
4U 5-Port Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS


Cable(s)
CBL-0084L
1
16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE


Cable(s)
CBL-0087
1
CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM


Cable(s)
CBL-0160L
1
US POWER CORD 16AWG, PB FREE


Cable(s)
CBL-0286L
2
4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)


Cable(s)
CBL-0336L
1
57CM, 4 P
