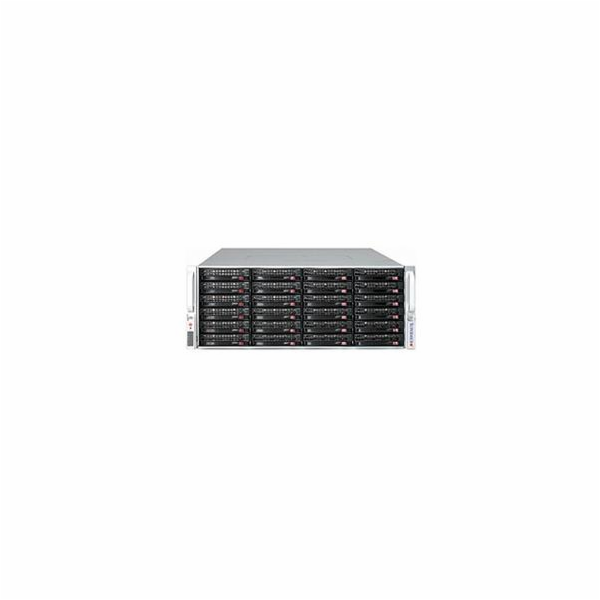

SUPERMICRO 4U chassis 36x 3,5" HS SAS/SATA (24x Front + 12x Rear/4xNVMe opt) +2x 2.5"opt., 2x1200W (80PLUS Titanium)

Product SKUs


SuperChassis  847BE1C4-R1K23LPB







Form Factor




4U chassis support for motherboard size 12" x 10", 13.68" x 13", 9.6" x 9.6"









Processor Support




Dual and Single Intel® and AMD processors









Dimensions


Height


7" (178 mm)




Width


17.2" (437 mm)




Depth


27.5" (699 mm)




Gross Weight


118 lbs (53.52 kg)




Net Weight


86 lbs (39 kg)




Packaging (W x H x L)


27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)




Available Color


Black









Expansion Slots




7x Low-profile expansion slot(s)









Drive Bays




Optional 2x 2.5" hot-swap drive bay
36x 3.5" hot-swap SAS/SATA drive bay with SES3









Backplane




12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD









Peripheral Drives




Optional 4x 2.5" internal fixed drive bay
Optional 2x 3.5" internal fixed drive bay









Front Panel


Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
2 Network Activity LEDs
Unit Identification (UID) LED
Fan Fail/System Over Heat LED























Systems Cooling


Fans


7x 80mm high-performance fan(s)









System Monitoring




Chassis intrusion switch









Operating Environment (System)


Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)









Power Supply


1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm


Power Efficiency


96%




Total Output Power and Input


1200W with Input 200 - 240Vac
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vdc




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


336 x 76 x 40 mm




Output Type


Backplanes (gold finger)




+12V


Max: 100A / Min: 0A (200Vdc - 240Vdc)
Max: 100A / Min: 0A (200Vac - 240Vac)
Max: 83A / Min: 0A (100Vac - 127Vac)




+5Vsb


Max: 4A / Min: 0A




Power Distributor


PDB-PT847-8824
O/P: 12V/135
+5V Max: 100A
+3.3V Max: 30A
-12V Max: 0.6A




Certification


   Titanium Certified









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
