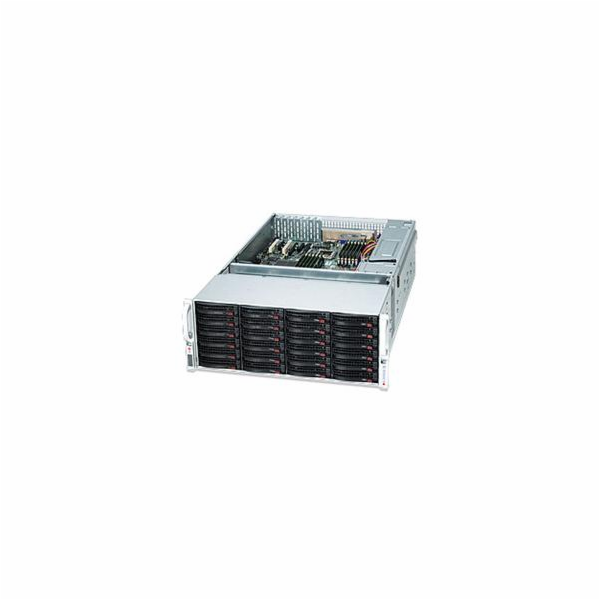

SUPERMICRO 4U Chassis CSE-847BE1C-R1K28LPB, 4U, 36x 3.5" H/swap SAS/SATA Drive Bays, 1280W Redundant PSU - Black

Serverový konfigurátor


1. 36x (24 front + 12 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
--------------------------------------------------------------------------------
2. Optional rear 2.5" removable HDD
--------------------------------------------------------------------------------
3. Redundant 1280W Platinum Level (1+1) power supplies with PMBus
--------------------------------------------------------------------------------
4. 7x low-profile expansion slots; 7x 8cm (middle) hot-swap cooling fans and adjustable air shroud
--------------------------------------------------------------------------------
5. E1C: Single SAS3 (12Gbps) expander backplane; E2C: Dual SAS3 (12Gbps) expanders backplane
--------------------------------------------------------------------------------
6. Mini SAS HD (SFF 8643) connectivity on backplane
--------------------------------------------------------------------------------
7. Palletized packaging for easy shipping and handling

Form Factor

4U chassis for motherboard support size of 13.68" x 13", 9.6" x 9.6"

Processor Support

Single and Dual Intel® and AMD processors

Dimensions

Height 7" (178mm)

Width 17.2" (437mm)

Depth 27.5" (699mm)

Packaging 27.2 (W) x 7 (H) 39.6 (L)

Gross Weight 75 lb (34.02 kg)

Available Colors Black


Expansion Slots

Up to Without Universal I/O (UIO) Card:
7 low-profile expansion slot(s)

Drive Bays

Storage Chassis 36x 3.5" hot-swap drive bay
SAS or enterprise SATA HDD only recommended


Backplane

HDD Backplane supports 36 SAS hard drives

Front Panel

Buttons • Power On/Off button
• System Reset Button

LEDs • 2 Network Activity LEDs
• Fan Fail/System Over Heat LED
• HDD activity LED
• Power Status LED
• Unit Identification (UID) LED

System Cooling

Fans 7x 8cm (7000 RPM) hot-swap PWM cooling fan


System Monitoring

Chassis intrusion switch


Operating Environment (System)

Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F)

Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F)

Operating Relative Humidity Range 8% ~ 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)


Power Supply with Digital Switching Control & PMBus 1.2
1280W High-Efficiency (95%+) power supply
AC Input 1000W Output @ 100-140V, 12-8A, 50-60Hz
1280W Output @ 180-240V, 8-6A, 50-60Hz

DC Output 1000W: +12V/83A; +5Vsb/4A
1280W: +12V/106.7A, +5Vsb/4A

Certification Platinum Level Certified95%+
Platinum Certified
[ Test Report ]

Regulatory (Power Supply)

Power Supply Safety / EMC USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
