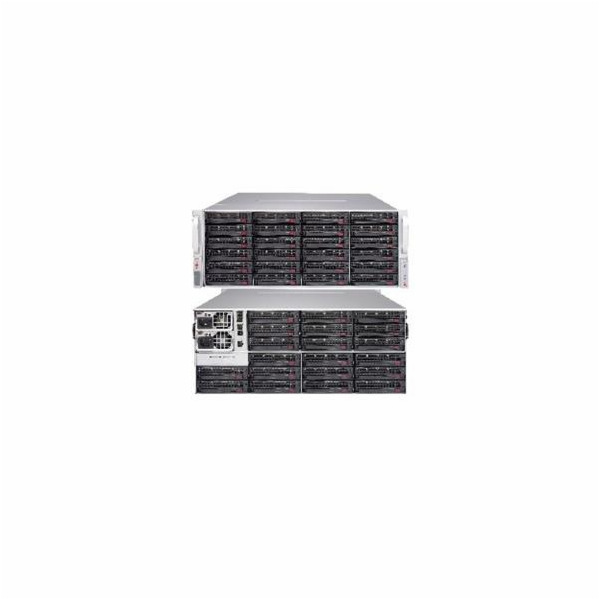

SUPERMICRO 4U JBOD Storage, 44x 3,5" HS HDD (24 front + 20 rear) Dual Expander SAS3 (12Gb/s) 2x1200W (Tit.)

Key Features


Double-sided High Density JBOD Storage Enclosure



44x (24 front + 20 rear) 3.5" hot-swap SAS drive bays supporting SAS3/2 HDDs with 12Gbps throughput
Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
7x 8cm (middle) hot-swap redundant cooling fans
SAS3 (12Gbps) backplane with dual expanders supports SAS3 drives for load balancing and redundancy
JBOD Power Control Board with IPMI for remote monitor and power on-off
8x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
Palletized packaging for easy shipping and handling
Qualified SAS HBA / controller:
AOC-SAS3-9300-8E  - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E  - 12Gb/s 2-external ports SAS3 RAID Controller



Specifications















Product SKUs





CSE-847E2C-R1K23JBOD


SuperChassis 847E2C-R1K23JBOD















Form Factor







4U SAS3 JBOD storage chassis















Dimensions





Height


7" (178 mm)




Width


17.2" (437 mm)




Depth


27.5" (699 mm)




Gross Weight


95 lbs (43.09 kg)




Packaging (W x H x L)


27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)




Available Color


Black















Drive Bays







44x 3.5" hot-swap HDD bay for JBOD solution















Qualified SAS Controllers







AOC-SAS3-9380-8E : SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
AOC-SAS3-9300-8E : SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter















Backplane







24-Port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
20-Port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)















Front Panel





Button


Power On/Off button
System Reset button
Unit Identification (UID) button




LED


Power status LED
1 Network activity LEDs
Power Fail LED
Unit Identification (UID) LED
Fan Fail/System Over Heat LED


























Systems Cooling





Fans


7x 8cm hot-swap redundant PWM cooling fan(s)















System Monitoring







IPMI















Operating Environment (System)





Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)















Power Supply





1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm


Power Efficiency


96%




Total Output Power and Input


1200W with Input 200 - 240Vac
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vdc




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


336 x 76 x 40 mm




Output Type


Backplanes (gold finger)




+12V


Max: 100A / Min: 0A (200Vdc - 240Vdc)
Max: 100A / Min: 0A (200Vac - 240Vac)
Max: 83A / Min: 0A (100Vac - 127Vac)




+5Vsb


Max: 4A / Min: 0A




Power Distributor


PDB-PT847-8824
O/P: 12V/135
+5V Max: 100A
+3.3V Max: 30A
-12V Max: 0.6A




Certification


   Titanium Certified















Regulatory (Power Supply)





Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL




























Components











Standard Parts List



Part Number
Qty
Description


Bracket
MCP-120-84702-0N
1
CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF


HD Backplane
BPN-SAS3-846EL2
1
24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)


HD
