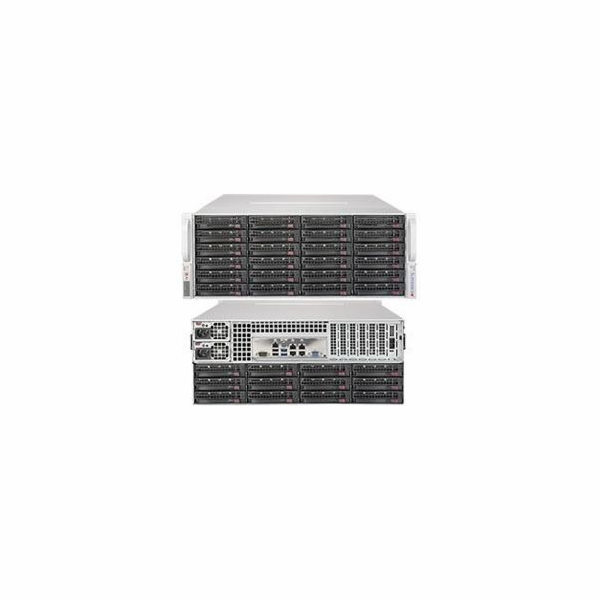

SUPERMICRO 4U SuperStorage server RAID 12Gb/s SAS/SATA 36xHS HDD (expand.24front+12rear), HW RAID LSI 3108, 2x1200W,IPMI

Product SKUs

SSG-6049P-E1CR36H SuperStorage 6049P-E1CR36H (Black)



Motherboard


Super X11DPH-T


Processor/Cache

CPU Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W

Cores Up to 28 Cores

Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity 16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††

Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset Intel® C622 chipset

SAS SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID
RAID 0, 1, 5, 6, 10, 50, 60

SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10

Network Controllers Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics ASPEED AST2500 BMC



Input / Output

LAN 2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 4 USB 3.0 ports (rear)
1 Type A

VGA 1 VGA port

Serial Port / Header 1 Fast UART 16550 port / 1 Header



System BIOS

BIOS Type 256Mb AMI UEFI



Management

Software Intel® Node Manager
IPMI 2.0
NMI
SPM, SUM
SuperDoctor® 5
Watchdog



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 4U Rackmount

Model CSE-847BE1C4-R1K23LPB



Dimensions

Width 17.2" (437mm)

Height 7" (178mm)

Depth 27.5" (699mm)

Weight Gross Weight: 102.5 lbs (46.4 kg)
Net Weight: 65.5 lbs (29.7 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power status LED
Hard drive activity LED
Network activity LEDs
System Information LED
Power fail LED



Expansion Slots

PCI-Express 3 PCI-E 3.0 x16 slot
4 PCI-E 3.0 x8 slots
Slot 2 & 3 occupied by controller and JBOD Expansion Port



Drive Bays

Hot-swap 36 Hot-swap 3.5" SAS3/SATA3 drive bays
2 Hot-swap 2.5" SATA3 drive bays (rear)

Optional 4 U.2 NVMe
2 M.2 NVMe



Backplane

SAS3/SATA3 single expander per backplane


System Cooling

Fans 7x 8cm high-performance PWM fans
Redundant cooling



Power Supply (76mm Width)

1200W Redundant Power Supplies with PMBus
Total Output Power 1000W/1200W

Dimension
(W x H x L) 76 x 40 x 336 mm

Input 100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
200-240Vdc / 8.5-7A (for CCC only)

+12V Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)

+5Vsb Max: 4A / Min: 0A

Output Type 19 Pairs Gold Finger Connector

Certification Platinum Level Certified95%+ Titanium Level
[ Test Report ]


Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
