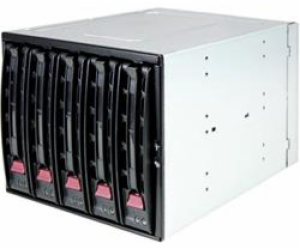

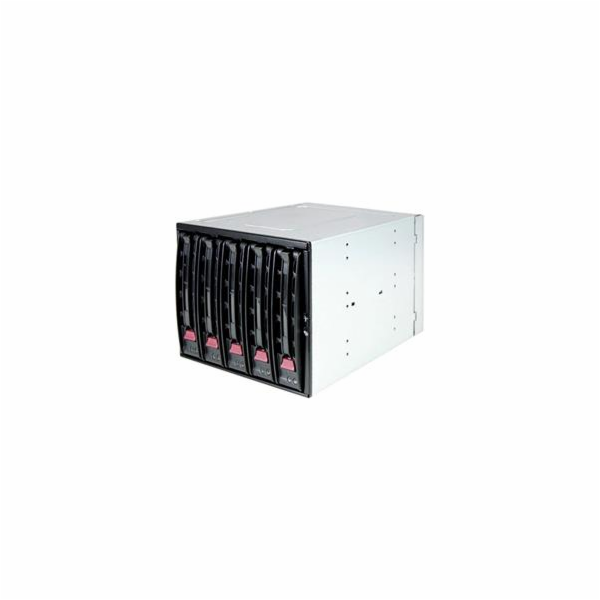

SUPERMICRO 5 Bay SAS/SATA HDD (Black) Enclosure

Key Features

1. 5x 3.5" Hot-swap SATA Hard Disk

    Drive Trays


2. Fan Failure LED and Alarm


3. Overheat LED


4. Drive Activity LED


5. Drive Failure LED


6. 3x 5.25" Drive Bay Enclosure


7. 9cm Cooling Fan Subsystem


























Available Colors





































  Black

































Downloads



































Manual


























Specifications











Dimensions





Height
5" (127mm)





Width
5.8" (147mm)





Depth
9.7" (245mm): with fan

7.7" (195mm): without fan





Gross Weight
7.5 lbs (3.4kg): with package

6 lbs (2.6kg): mobile rack only





Available Colors
Black










Occupancy





? 3x 5.25" Drive Bays










Capacity





5x 3.5" Hot-swap SAS/SATA HDDs with SES2






















Cooling Sub-system





Fans
1x 90mm Exhaust Fan










System Monitoring





LEDs / Alarms
? Fan Fail LED and Alarm

? Overheat LED Indication Alarm

? Drive Activity Indication and Alarm










Compatibility





Chassis
? SC748 Series

? SC747 Series

? SC745 Series

? SC743 Series














Parts List









Standard Parts List






Part Number
Qty
Description


Cable(s)
CBL-0097L-02
1
79536-3220, 50cm IPASS to 4 SATA


Backplane
CSE-SAS-M35TQ
1
M35 SAS backplane w/ AMI MG9072


Mobile Rack
CSE-M35P
1
Disk array mobile rack w/ 5 drives


Drive Trays
CSE-PT17
5
Beige SCA hard drive carrier, 2U


Cooling Fan
FAN-0057L4
1
92x32mm 4-pin PWM fan assembly for M34 and M35
