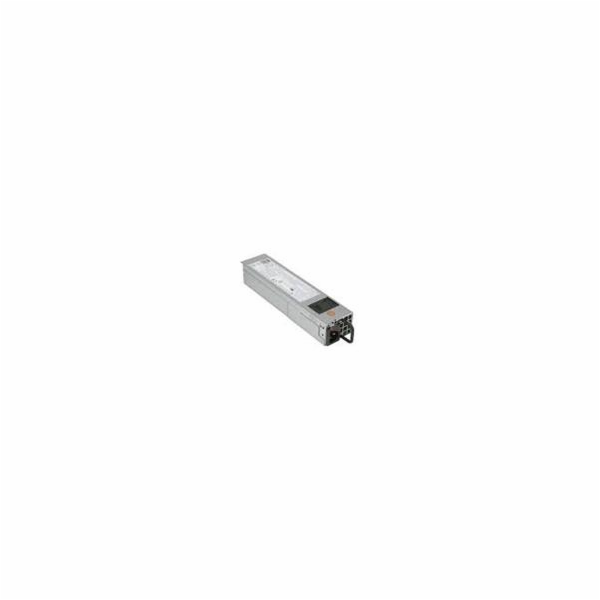

SUPERMICRO AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/

The Supermicro PWS-407P-1R is an 80 Plus Platinum level redundant power supply capable of supplying 400W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 100,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

Total Power Output
400W

Type
Module

Type of Power Supply
Power Supply

Form Factor
1U

Dimension (W x H x L)
54.5(W)*220(L)X40(H) mm

+5V
N/A

+12V
33A

+3.3V
N/A

5V Standby
3.0A

Input Voltage Range
100-240VAC / 6.0 – 3.0A | 200-240VDC / 3.4- 3.2A

Input Frequency Range
50-60Hz

Input Current Range
6–3A for AC | 3.4-3.2A for DC

Output Type
Gold Finger

8Pin / 4Pin (12V) Connector
N/A

PFC
Yes

Voltage / Current
Yes

Energy Efficiency
94% Peak

80 Plus Certification
80 Plus Platinum

Validated Systems
AS-1013S-MTR, SSG-5019D8-TR12P, SYS-1018D-FRN8T, SYS-1018R-WR, SYS-1019D-12C-FRN5TP, SYS-1019D-14C-FRN5TP, SYS-1019D-16C-FRN5TP, SYS-1019D-FRN5TP, SYS-1019D-FRN8TP, SYS-1019S-M2, SYS-1019S-WR, SYS-5018D-MHR7N4P, SYS-5018R-MR, SYS-5019C-MR, SYS-5019P-MR, SYS-5019P-MTR, SYS-5019S-MR, SYS-5019S-MR-G1585L

Validated Chassis
CSE-514-407C-1P, CSE-514-407W-1P, CSE-514-R407C, CSE-514-R407W, CSE-515-R407, CSE-813MFTQC-R407CB

Warranty
1 year warranty

Product Environmental Compliance
RoHS and REACH compliant, details available upon request
