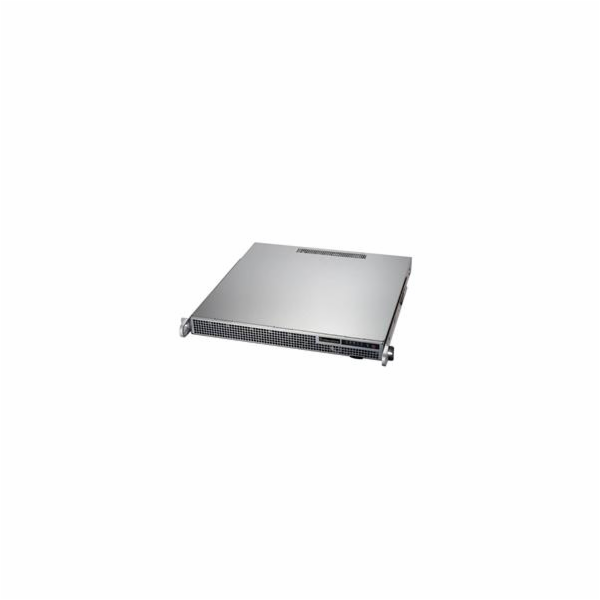

SUPERMICRO AS-1015A-MT, Ryzen 9 9950X CPU, 4x 32GB DDR5-5600, 2x SSD M.2 NVMe PCIe4 960GB, AOC-STGS-I2T-P, AOM-TPM-9670V

Product SKUs


A+ Server  AS -1015A-MT







Motherboard


Super H13SAE-MF







Processor


CPU


Single processor(s)
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors




Core Count


Up to 16C/32T




Note


Supports 60W - 170W TDP CPUs (Air Cooled)









GPU


Max GPU Count


Up to 1 single-width GPU




Supported GPU


NVIDIA PCIe: A2, L4, RTX 4000 Ada Generation, RTX A4000
AMD PCIe: Radeon Pro W7500
View GPU Options




CPU-GPU Interconnect


PCIe 5.0 x16 CPU-to-GPU Interconnect









System Memory


Memory


Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
View Memory Options




Memory Voltage


1.1V









On-Board Devices


SATA


SATA (6Gbps) ; RAID 0/1 support




NVMe


NVMe; RAID 0/1 support(Native)




Chipset


AMD B650




Network Connectivity


1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
2 RJ45 1GbE with Intel® I210-AT
View AOC Options









Input / Output


LAN


1 RJ45 1 GbE Dedicated BMC LAN port




USB


3 Type-A ports(Rear)
2 Type-C ports(Rear)
1 Type-C port(Rear)




Video


1 VGA port
1 DisplayPort 1.4 port
1 HDMI 2 port




Audio


Rear Audio




TPM


1 TPM header









System BIOS


BIOS Type


AMI 32MB SPI Flash









Management


Software


SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!




Power configurations


ACPI 6.0 Power Management









Security


Hardware


Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant




Features


Supply Chain Security: Remote Attestation
Runtime BMC Protections









PC Health Monitoring


FAN


Status monitor for speed control




Other Features


8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor




Temperature


CPU thermal trip support, Monitoring for CPU and chassis environment, PECI




Voltage


+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
