Product SKUs

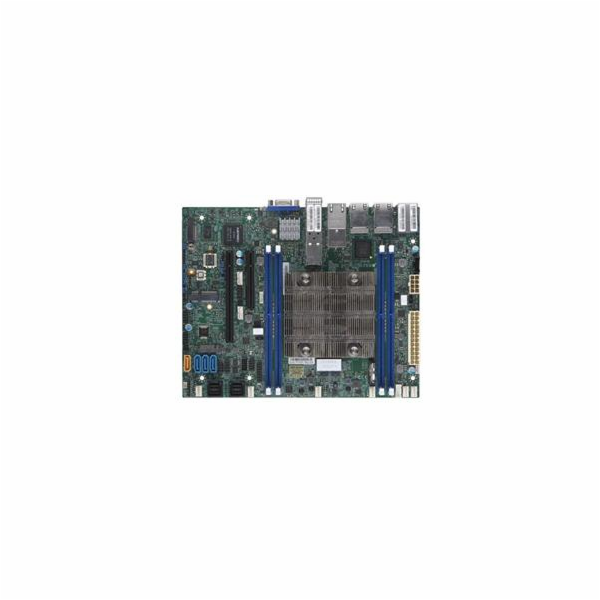

MBD-X11SDV-8C-TP8F X11SDV-8C-TP8F
Physical Stats
Form Factor Flex ATX
Dimensions 9" x 7.25" (22.86cm x 18.42cm)
Processor/Cache
CPU Intel® Xeon® Processor D-2146NT, CPU TDP support Up to 80W TDP
Cores / Cache 8 cores, 16 threads / 9MB cache
System Memory
Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
(Operating speed up to 2133MHz)
DIMM Sizes RDIMM: 16GB, 32GB, 64GB, 128GB
LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V
Error Detection Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset System on Chip
SATA SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Graphics ASPEED AST2500 BMC
Input / Output
SATA 4 SATA3 ports via SoC controller
LAN 4 RJ45 Gigabit Ethernet LAN ports
2 RJ45 10GBase-T ports
2 10G SFP+ LAN ports
USB 2 USB 2.0 ports (2 via headers)
2 USB 3.2 Gen1 ports (2 rear)
Video Output 1 VGA D-Sub Connector port
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x8,
1 PCI-E 3.0 x16
1 Mini-PCI-E
M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280
1 M.2 B-Key SATA/PCI-E 3.0 x2, 3042
System BIOS
BIOS Type UEFI 128Mb
BIOS Features ACPI 6.1
SMBIOS 3.1
UEFI 2.6
PCI FW 3.2
Management
Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, Watchdog
Power Configurations +12V DC Power Input
ACPI Power Management
CPU thermal trip support for processor protection
PC Health Monitoring
Voltage +1.5V, +12V, +3.3V, +5V, +5V standby, 5 (4-pin), 5 -fan status, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT
FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control, System level control, Thermal control tachometer fan connectors
Temperature PECI, CPU thermal trip support, Monitoring for CPU and chassis environment
LED BMC/IPMI Heartbeat LED, UID/Remote UID, CPU / System Overheat LED
Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel® QuickAssist Technology , M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
